Cutting
machines |
|
 |
Product
designation: A127
Name: (FIK)Fuji
medium-sized cutting machine (FIK)
Specs: Overall length: 450mm
Weight: 609g
Usage: Cutting
of common metal slices and small pipes
Note: The
product is developed and manufactured by our company
|
Serial number of burners |
1 |
2 |
3 |
|
Diameter ㎜ |
0.7 |
0.9 |
1.1 |
|
Cutting thickness ㎜ |
10 |
20 |
30 |
|
Oxygen pressure ㎏/c㎡ |
3.0 |
5 |
6.5 |
|
Acetylene presuure ㎏/c㎡ |
0.3 |
0.5 |
0.8 |
|
|
 |
Product
designation: A127-A
Name: Japan
Tokyo mid-cutting burners |
|
 |

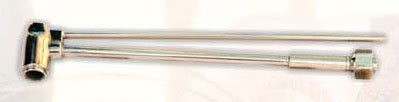

Product
designation: A127-B
Name:
Front
end of the mid-cutting apparatus |
|
 |
Product
designation: A127-C
Name:
High-pressure core-linked base of for cutting purpose |
|
 |
Product
designation: A127-D
Name: Needle fineness apparatus |
|
 |
Product
designation: A127-E
Name: Bearing |
|
 |
Product
designation: A127-F
Name: Low pressure acetylene core-linked base
for pre-heating purpose |
|
 |
Product
designation: A127-Ｇ
Name: Air distribution needle valve
core-linked base |
|
Melting-Cutting machine |
|
 |

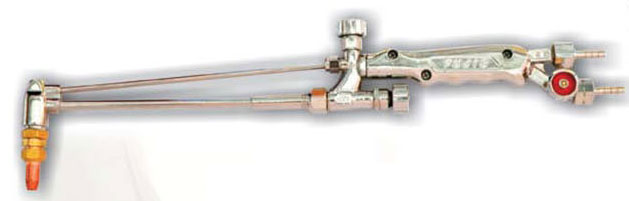

Product
designation: A128
Name: Fuji-cutting machine for both melting
and cutting purpose |
|
 |
Product
designation: A128-A
Name: Melting burner base converter |
|
 |
Product
designation: A128-B
Name: Thermowelding front end |
|
 |
Product
designation: A128-C
Name: Acetylene burners |
|
 |
Product
designation: A128-D
Name: LPG burners |
|
 |

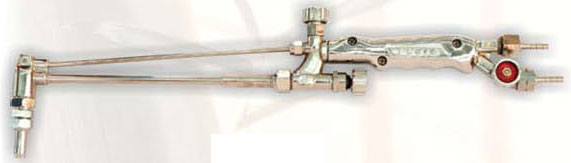

Product
designation: A129
Name: Fuji-medium-sized methane gas cutting
machine |
|
 |
Product
designation: A129-A
Name: Japan Tokyo FU-medium-sized methane gas
burners |
|
 |

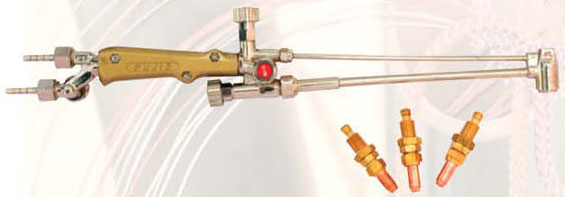

Product
designation: A130
Name: Japan Tokyo FU-medium-sized
explosion-prevention cutting
machine
Note: The product can prevent the
backfire effect, and effectivly avoid the
accident, applicable
to both melting and cutting |
|
 |
Product
designation: A130-A
Name: Backfire prevention apparatus |
|
Product
designation: A130-B
Name: Front end of the explosion prevention
cutting apparatus |
 |

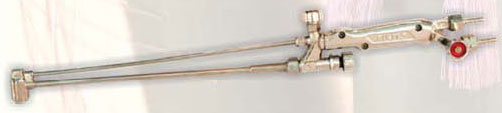

Product
designation: A131
Name: Fuji mid-cutting apparatus--extended
type
Specs: Overall length:520mm
Weight: 640g |
 |

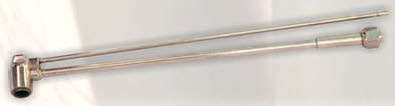

Product
designation: A131-A
Name: Extended front end of the mid cutting appratus |
|
180 degree
cutting machine |
|
Break
down figure of the parts of product A127
|
Product
designation: A127-H
Name: Main part of the
cutting apparatus
|
Product
designation: A127-I
Name: Oxygen distribution
tube
|
|
Product
designation:
A127-J
Name: Pre-heating
distribution tube
|
Product
designation: A127-K
Name: Bellmouth
|
|
 |
Product
designation: A132
Name: Fuji-straight mid cutting machine(180
degree)
Note: The product of this kind can be effectivly inserted into the tubes and
cut circularly, which can
be pre-fabricated and extended |
|
 |
Product
designation: A132-A
Name: Front end of the 180 degree mid cutting
machine
Note: Can be pre-fabricated and
extended according to the operation
requirements |
 |

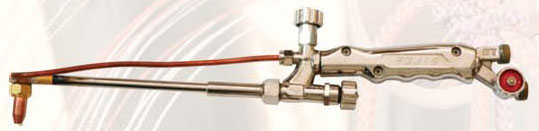

Product
designation: A133
Name: Cutting machine inside the tube
Note: Small effective operation diameter
|
 |
Product
designation: A135
Name: Handle of mid-cutting machine |
|
 |
Product
designation:
A136
Name: Mid cut burners--compass |
|
 |
Product
designation: A136-A
Name: A cutting burners-compass |
|
Japan Kanata-Koike medium-sized cutting
machine |
 |

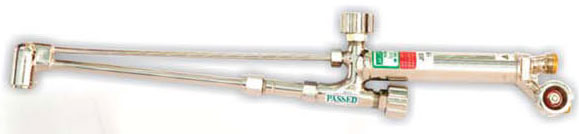

Product
designation: A137
Name: Japan Kanata-Koike medium-sized cutting
machine
Specs: Attached by three burners-the length
can be subject to the client's
requirement, spare parts can also
be available （Oxygen high
pressure core-linked base for cutting
purpose, Needle valve
Acetylene low pressure core-linked base) |
|
 |
Product
designation: A137-A
Name: Japan Kanata burners
Specs: #1, 2, 3 |
 |

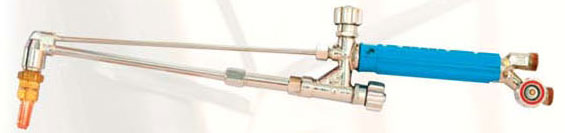

Product
designation: A138
Name: Japan Koike-medium-sized cutting
machine
Specs: The prduct is backfire retardant-can effectivly prolong the annealed
cutting machine |
 |
Product
designation: A138-A
Name: High pressure oxygen core-linked base
for cutting purpose |
 |
Product
designation: A138-B
Name: Low pressure oxygen core-linked base
for heating purpose |
 |
Product
designation: A138-C
Name: Low pressure acetylene core-linked base
for pre-heating purpose |
 |
Product
designation: A138-D
Name: Japan Koike-mid-cut burners(#1, 2, 3) |
 |
Product

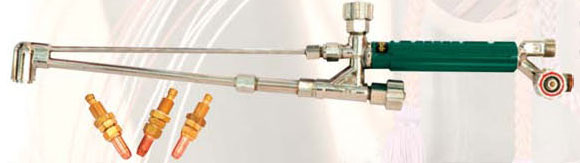

designation: A139
Name: Japan Koike-medium-sized explosion
prevention cutting machine |
 |

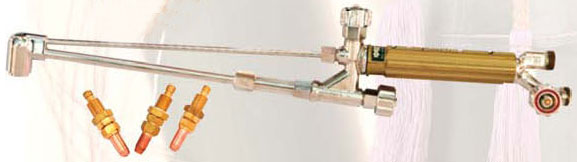

Product
designation: A139-A
Name: Japan Koike-medium-sized cutting
machine
Specs: Spare parts are subject to selection |
 |
Product
designation: A139-B
Name: High pressure oxygen core-linked base
for cutting purpose |
 |
Product
designation: A139-C
Name: Needle fineness apparatus |
 |
Product
designation: A139-D
Name: Acetylene low pressure core-linked base
for pre-heating purpose |
|
Product
designation: A139-Z
Name: Serial No. of the ordered products |
