Introduction of products-Cutting machine, Economizer

Page 1Page 2Page 3

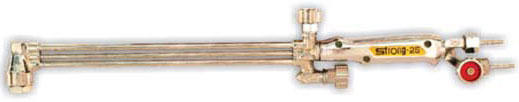

Japan No. 25-medium pressure-explosion prevention cutting machine with three branch tubes

Product designation: A161
Name: Japan Tokyo FU-25 explosion prevention cutting machine with three branch tubes
Specs: Overall length: 520mm Weight: 861g


Burners

Three automatic cutting machine burners

Cutting thickness

Maximum 250 mm, dependent on the burners

Fuel

Any medium pressure combustible gas, dependent on the burners

Adaptors

BS(G3/8)
JIS(M16 x 1.5) Japan standard
CGA(9/16-18UNF) American standard

The cutting operation of the product is safe and convenient, and backfire retardant

Product designation:A161-A
Name: High pressure oxygen core-linked base for cutting purpose

Product designation:A161-B
Name: Low pressure oxygen core-linked base for heating purpose

Product designation:A161-C
Name: Low pressure acetylene core-linked base for heating purpose

Product designation:A161-D
Name:
Fixed blowpipe bolt

Product designation:A161-E
Name: Main part of the 180 degree cutting machine-Parts

Product designation:A161-F
Name: Main part of the 75 degree cutting machine-Parts

Product designation:A161-G
Name: Main part of the 90 degree cutting machine-Parts

Product designation:A161-H
Name: Japan Koike-102H-automatic burners (#H1-H2-H3...)

Product designation:A161-I
Name: Japan Koike-106H-automatic burners (#H1-H2-H3...)

Product designation:A161-J
Name: Handle of No. 25 cutting machine

Product designation:A161-K
Name: Japan Tokyo-102H-automatic burner

Product designation:A161-L
Name: Japan Tokyo-106H-automatic burner (L1-L2-L3...)

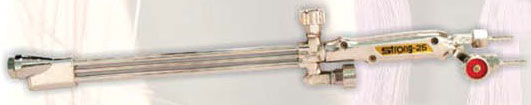

Product designation:A162
Name: Japan Tokyo FU-25 explosion prevention cutting machine with three branch tubes (180 degree straight type)
Specs: Overall length: 520mm Weight: 883g

Product designation:A163
Name: Japan Tokyo FU-25 explosion prevention cutting machine with three branch tubes (180 degree straight type)
Specs: Overall length: 1000mm Weight: 1085g
Note: The length can be subject to the client's requirement

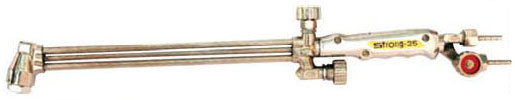

Product designation:A165
Name: Japan Tokyo FU-25 explosion cutting machine with three branch tubes(75 degree type)
Specs: Overall length: 520mm (subject to client's requirement) Weight: 859g

Product designation:A166
Name: Japan Tokyo FU-25 explosion cutting machine with three branch tubes(90 degree type)
Specs: Overall length: 610mm Weight: 920g

Product designation: A167
Name: Japan Tokyo FU-25 explosion cutting machine with three branch tubes(90 degree type)
Specs: Overall length: 1000mm Weight: 1085g


Product designation: A168
Name: British CUTT hand compression fast explosion-prevention cutting  machine with three branch tubes(90 degree)
Specs: Overall length: 510mm Weight: 1247g


Product designation: A169
Name: British CUTT hand compression fast explosion-prevention cutting  machine with three branch tubes(90 degree)
Specs: Overall length: 1000mm (subject to the client's requirement) Weight:  1473g



Product designation: A170
Name: British CUTT hand compression fast explosion-prevention cutting  machine with three branch tubes(180 degree)
Specs: Overall length: 550mm  Weight: 1286g


Product designation: A171
Name: British CUTT hand compression fast explosion-prevention cutting  machine with three branch tubes(180 degree)
Specs: Overall length: 1000mm (subject to the client's requirement) Weight: 1512g



Product designation: A171-A
Name: British CUTT hand compression fast explosion-prevention cutting  machine with three branch tubes(75 degree)
Specs: Overall length: 520mm  Weight: 1238g


Product designation: A171-B
Name: British CUTT hand compression fast explosion-prevention cutting  machine with three branch tubes75 degree)
Specs: Overall length: 1000mm  Weight: 1473g

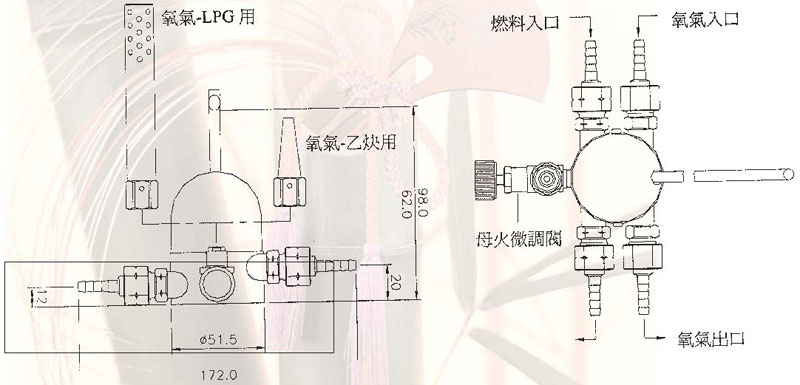

Acetylene-Methane gas economizer

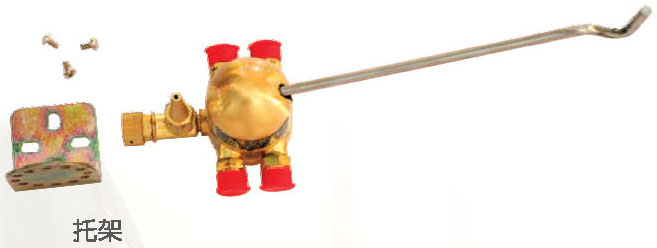

Product designation: A172
Name: Oxygen-Acetylene economizer

Product designation: A173
Name: Oxygen-LPG economizer





Model

Gas

Usage

A172

O2-1-7㎏/c㎡

C2H2-0.2-1㎏

A173

O2-1-7㎏/c㎡

LPG-0.2-2㎏

 Note:

1.  Applicable to intermittent gas welding (Oxygen-Acetylene) or (Oxygen-Coal gas) on the production line.
2. Sturdy and durable, no problems caused by gas leakage, breaking or aging of the rubber gasket.
3. Simple structures, easy to be broken down for cleanout and maintenance.
4. Usage of nickel-plating forged copper and control valve for the main flame to reduce  the acid corrosion on the working site.
5. Proper connection of the selected rubber tube joints and the moveable nuts.
6. New modified bracket, which can be fixed to a certain direction.

Japan Koike-Kanata K.S. cutting machine

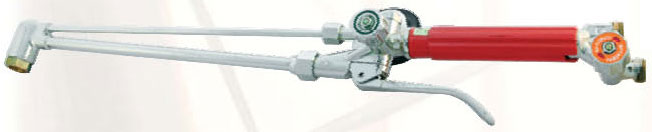

Product designation: A175
Name: Japan Koike-medium-sized explosion-prevention cutting machine

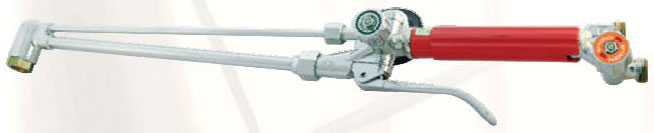

Product designation: A176
Name: Japan Koike-hand compression explosion-prevention cutting machine
