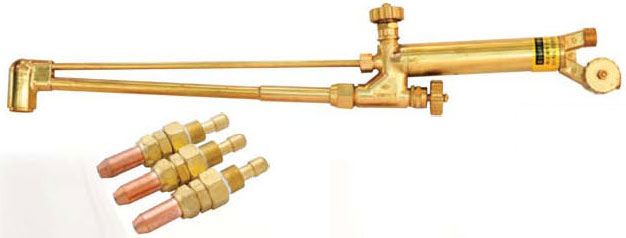

Japan Tokyo FU-A cutting machine |
|
 |
Product
designation: A150
Name: Japan Tokyo FU-A cutting machine
Specs: Overall length: 490mm
Weight: 994g
Usage: Applicable to steel structures,
shipbuilding, machineries, bolier,
steelworks, ship-breaking,
decomposition of wasted hardwares,
rapid transit, high-speed
railway and etc.
|
Serial number of burners |
1 |
2 |
3 |
|
Diameter ㎜ |
1.0 |
1.3 |
1.6 |
|
Cutting thickness ㎜ |
25 |
50 |
75 |
|
Oxygen pressure ㎏/c㎡ |
4 |
6 |
8 |
|
Acetylene presuure ㎏/c㎡ |
0.4 |
0.6 |
0.8 |
|
|
 |
Product
designation: A150-A
Name: Japan Tokyo FU-A cutting burner |
|
 |

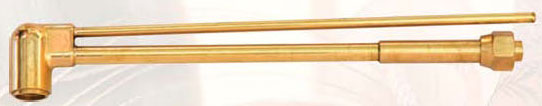

Product
designation: A150-B
Name: Front end of A cut type |
|
 |
Product
designation: A150-C
Name: High pressure core-linked base for
cutting purpose (up) |
|
 |
Product
designation: A150-D
Name: Needle fineness apparatus (EF)(down) |
|
 |
Product
designation: A150-E
Name: Bearing |
|
 |
Product
designation: A150-F
Name: Main part of the cutting
machine-Parts(FK) |
|
 |
Product
designation: A150-Ｇ
Name: Bellmouth |
 |
Product
designation: A150-H
Name: Japan Tokyo FU-A cut methane gas burner |
 |
Product
designation: A150-I
Name: Gas distribution needle valve
core-linked base |
 |
Product
designation: A150-J
Name: Low pressure acetylene core-linked base
for pre-heating purp
(rear) |
|
Product
designation: A150-Z
Name: Serial No. of the ordered products |
|
JapanTokyo
FU-Koike 90-180 degree cutting machine |
|
 |

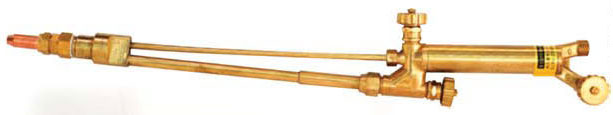

Product
designation: A151
Name: Japan Tokyo FU 180 degree straight
cutting machine
Specs: Can be pre-fabricated and extended as
required by the client |
|
 |
Product
designation: A151-A
Name: Front end of the 180 degree-A cut type
Specs: Spare parts are subject to selection
(Kanata are applicable); Serial
number of the ordered products
is: A151-Z
|
|
 |
Product
designation: A151-B
Name: Main part of the 180 degree cutting
machine |
|
 |

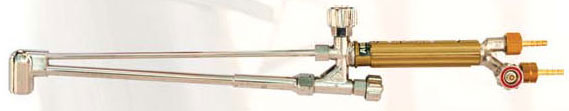

Product
designation: A152
Name: Japan Koike-A cutting machine
Specs: Can be pre-fabricated and extended as
required by the client |
|
 |

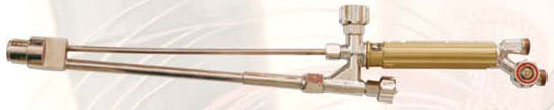

Product
designation: A152-A
Name: Japan Koike-180 degree straight cutting
machine
Note: Can be pre-fabricated and extended |
|
 |
Product
designation: A152-B
Name: High pressure Oxygen core-linked base
for cutting purpose |
|
 |
Product
designation: A152-C
Name: Needle fineness apparatus |
|
 |
Product
designation: A152-D
Name: Low pressure acetylene core-linked base
for pre-heating purpose |
|
 |
Product
designation: A152-E
Name: Front end of Koike A cut type |
|
 |
Product
designation: A152-F
Name: Front end of Koike A-180 degree cut
type
Note: Can be pre-fabricated and extended |
 |
Product
designation: A152-G
Name: Front end of Koike extended A cut type |
|
Japan
Kanata-Tokyo-Koike 90-180 degree straight-trencher-cutting
machine |
|
 |

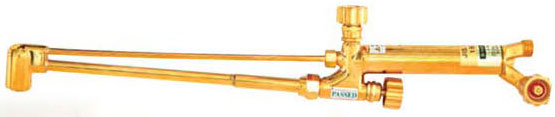

Product
designation: A153
Name: Japan Kanata-A cutting machine
(attached by three burners)
Specs: The length can be subject to the
client's requirement |
|
 |
Product
designation: A153-A
Name: Japan Kanata-A cutting burner |
 |
Product
designation: A153-B
Name: High pressure oxygen core-linked base
for cutting purpose
|
 |
Product
designation: A153-C
Name: Needle fineness apparatus |
|
 |
Product
designation: A153-D
Name: Low pressure acetylene core-linked base
for pre-heating purpose |
|
 |
Product
designation: A153-E
Name: Bearing of A cut type |
 |

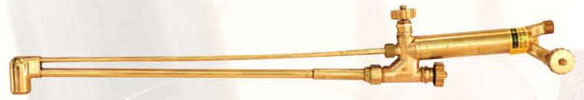

Product
designation: A155
Name: Japan Tokyo FU-A cutting machine(extended type) |
 |
Product
designation: A156
Name: Japan Kanata-A cutting machine(extended
type) |
 |

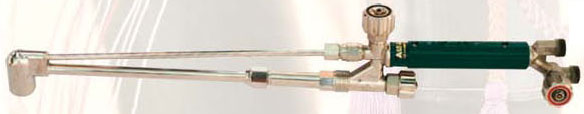

Product
designation: A157
Name: Japan Koike-A explosion prevention
cutting machine |
 |

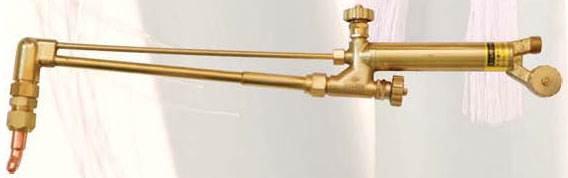

Product
designation: A158
Name: Japan Kanata-Koike-Tokyo FU-A trencher |
 |
Product
designation: A158-A
Name: Trencher burners |
|
No. 8 medium-pressure explosion prevention
cutting machine with three branch tubes |
 |
Product
designation: A159
Name: Japan Tokyo FU-8 medium-sized explosion
prevention cutting
machine
Specs: Overall length: 425mm
Weight: 606g Can be pre-fabricated and extended as
required by the client |
|
 |
Product
designation: A159-A
Name: Fixed blowpipe bolt |
 |
Product
designation: A159-B
Name: Main part of the cutting machine-parts |
 |
Product
designation: A159-C
Name: High pressure oxygen core-linked base
for cutting purpose |
 |
Product
designation: A159-D
Name: Low pressure oxygencore-linked base for
heating purpose |
 |
Product
designation: A159-E
Name: Low pressure acetylenecore-linked base
for pre-heating purpose |
 |
Product
designation: A159-F
Name: Japan 502B acetylene burners
(#F1-F2-F3) |
 |
Product
designation: A159-G
Name: Japan 506-B methane gas burners
(#G1-G2-G3) |
 |
Product
designation: A159-H
Name: Japan 502-C acetylene trencher burner |
 |
Product
designation: A159-I
Name: Japan 502-D trencher main part burner |
 |

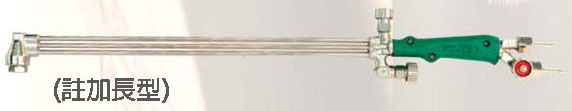

Product
designation: A160
Name: Japan Tokyo fu-8 medium-sized explosion
prevention cutting
machine
(extended type)
Specs: Overall length: 600mm
Weight: 670g Can be pre-fabricated and extended as
required by the client |
