Japan
K.S-CH-Fuji-Large-sized pipe meters, Part of the medium-sized
pipe meters-Fittings |
|
 |

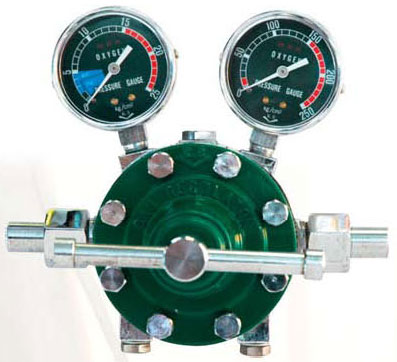

Product
designation: B319
Name: Japan
KS-140 pipe regulator (Kansai)
Specs: Adaptors and outlets can be
pre-fabricated; applicable to O2-N2-Ar-CO2-Air-He-H2
and etc.
Function
illustration |
|
 |

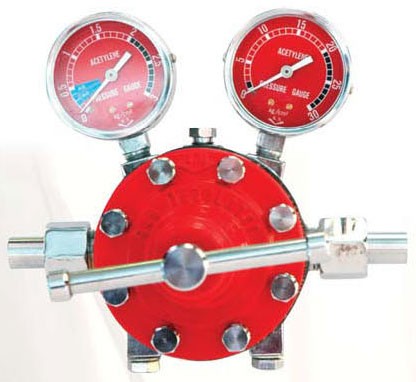

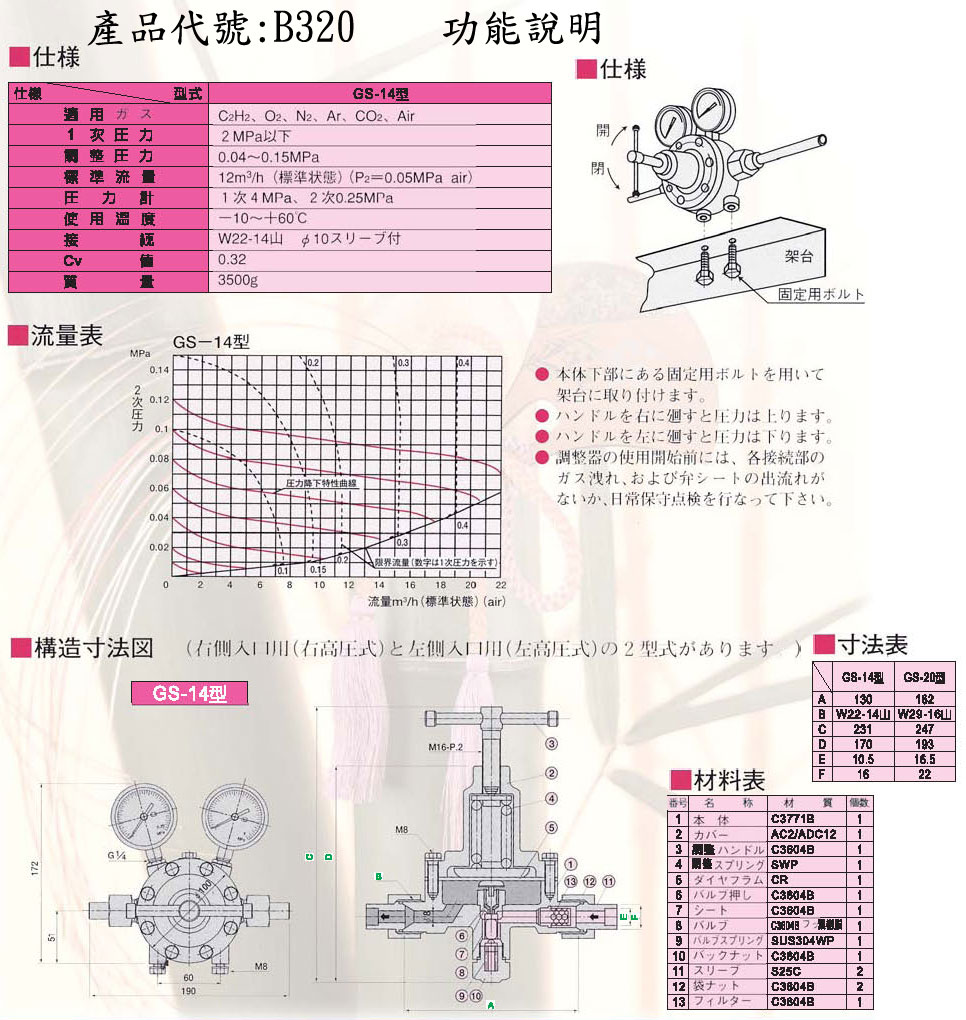

Product
designation: B320
Name: Japan
KS-14 pipe regulator (Kansai)
Specs: Adaptors
and outlets can be pre-fabricated; applicable to C2H2-LPG-Natural
gas
Function
illustration
Related product DM-1
Related
products DM-2
Related
products DM-3 |
|
 |
Product
designation: B321
Name: GN-medium-sized pipe meter (for O2、Ar、N2、CO2
and etc.)
Specs: Adaptors:
W22-14 RH thread, Outlet:
M16-1.5 RH thread Adaptors and outlets can be
pre-fabricated as required by the client |
|
 |

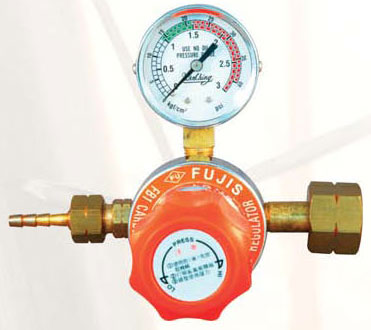

Product
designation: B322
Name: GN-medium-sized
pipe meter
Specs: Adaptors:
W22-14 LH left thread, Outlet:
M16-1.5 LH left thread Adaptors and outlets can be
pre-fabricated as required by the client
Applicable
gas: LPG-C2H2-He-H2-Natural
petroleum gas |
|
 |
Product
designation: B322-A
Name: Left
thread nut (W22-14LH) |
|
 |

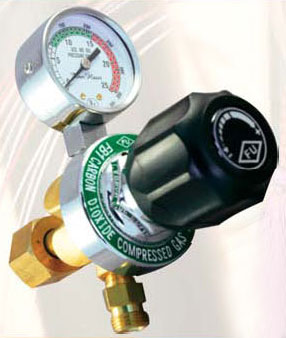

Product
designation: B323
Name: GN-Plug-type
medium-sized pipe meter (O2)
Specs: Adaptors:
W22x14 RH thread nuts, outlets:
M16-1.5 RH thread
Applicable to O2-N2-Ar-CO2-N2O-He;
OD head can be applied to the
outlets |
|
 |

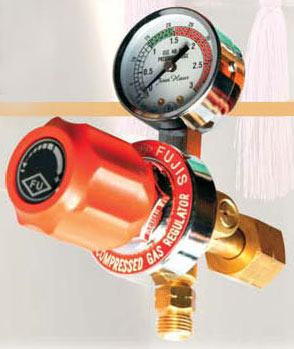

Product
designation: B325
Name: GN-Plug-type
medium-sized pipe meter
Specs: Adaptors:
W22x14 LH thread nuts, outlets:
M16-1.5 LH left thread
Applicable
gas: C2H2-LPG-Natural
methane gas |
|
SR-290、SR-29
Large-sized pipe meter regulators, medium-sized pipe meter
|
|
 |

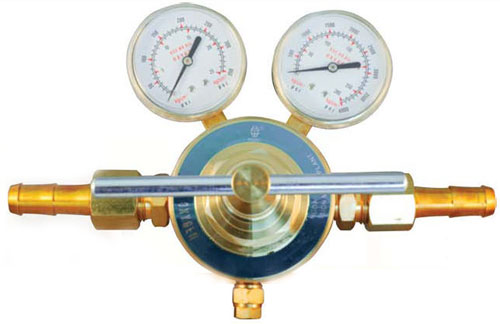

Product
designation: B326
Name:SR-290 large-sized regulator (full
copper)
Specs:Applicable to O2-N2-Ar-CO2-Air-H2-He
and etc.; can also be
used for liquid gases
Adaptors can be
W22.6X14RH
Male
Outlets can be M16X1.5RH
Male→(A)
Note:First pressure 0~280kg;
Second pressure 0~25kg |
|
 |

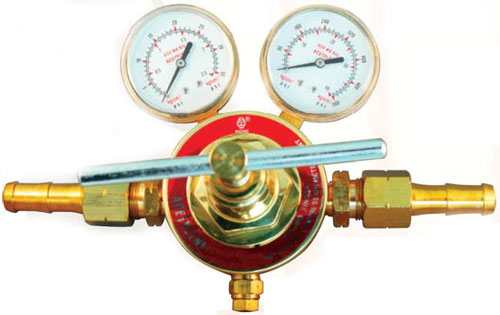

Product
designation: B327
Name:SR-29 large-sized regulators (full
copper)
Specs:Applicable to C2H2-LPG-Natural
gas-Natural petroleum gas Outlets and adaptors can be prefabricated Inlets are fitted with acetylene cylinder
bracket, outlets can be M16-1.5LH→(A)
Note: First pressure 0~40kg;
Second pressure 0~2.5kg |
|
 |
Product

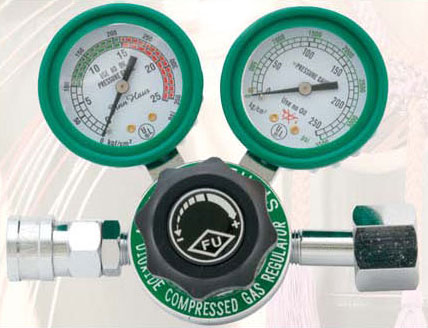

designation: B328
Name:GN-large-sized regulator
Specs:Adaptors: W22-14RH,
outlets will be female quick joint
Applicable gas: Ar-O2-N2-Air-He-N2O-H2... |
|
 |

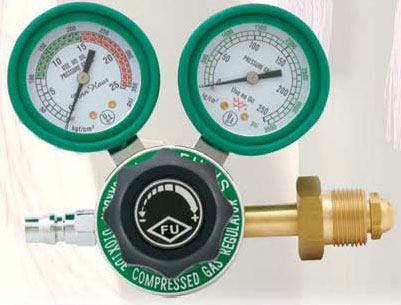

Product
designation: B329
Name:GN-medium-sized regulator
Specs: Adaptors: W24.2-14
thread, outlets will be male quick joint
Applicable gas: N2-He-O2 |
|
 |

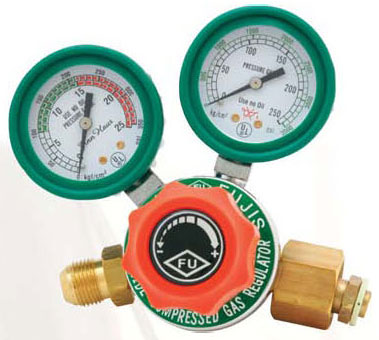

Product
designation: B330
Name:Argon welding machine-gas pipe
converting regulator
Specs:Outlet will be fitted with
3/4-16 threaded gavanlized steel tube
(4'') |
|
 |

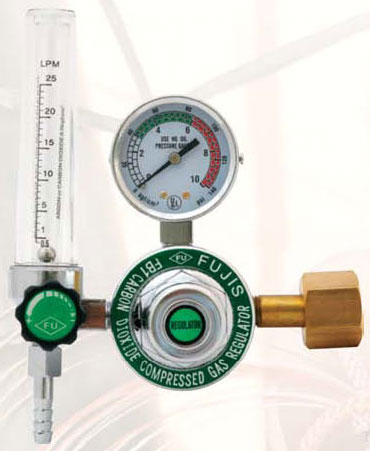

Product
designation: B331
Name:Pipe regulator+flowmeter
Specs:Second pressure0-10kg
(preset)
Applicable gas:CO2-Ar-N2-N2O... |
|
 |
Product

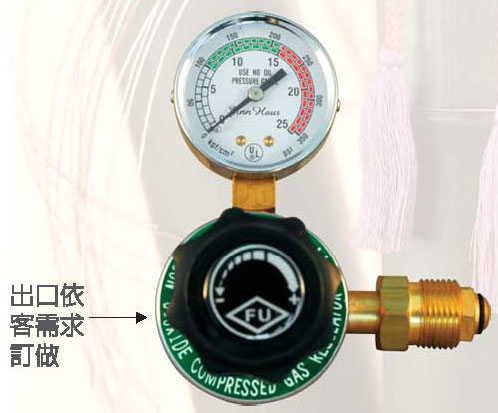

designation: B332
Name: GN-medium-sized pipe meter
Applicable gas: Ar-O2-N2-Air-He-N2O
Oulets: M16-1.5RH,
2''NPT,
OD head, 3''PT,
4''PT |
|
 |

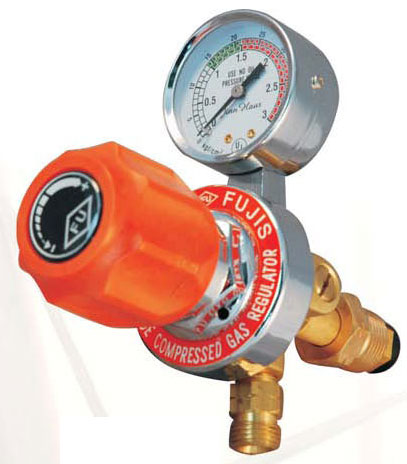

Product
designation: B333
Name: GN-medium-sized rear plug-type pipe meter
Applicable gas: C2H2,
LPG(A), Natural gas(B) |
|
 |

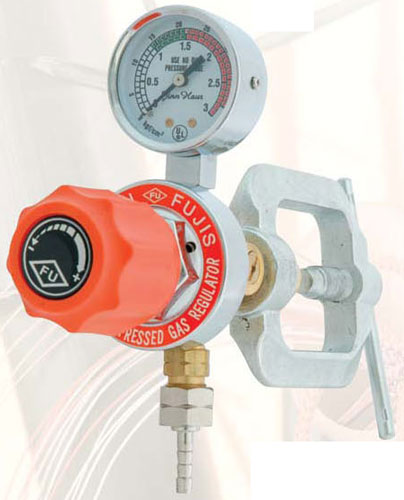

Product
designation: B333-C
Name: GN-medium-sized back plug-type acetylene
gauge |
|
 |

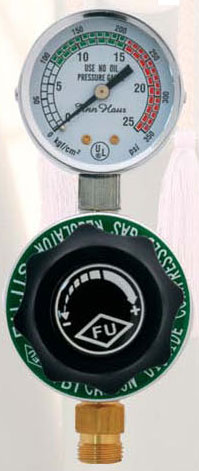

Product
designation: B333-D
Name: GN-medium-sized rear plug type male
regulator
Applicable gas: O2-N2-Ar-He-Air-N2O |
 |

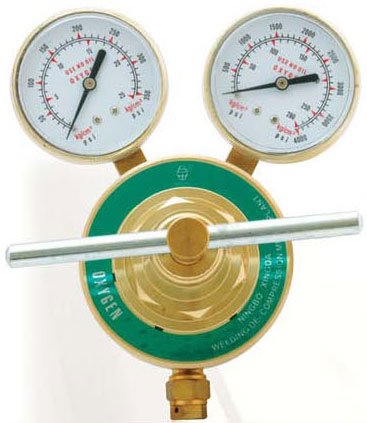

Product
designation: B335
Name:SR-290
large-sized pipe meter
Specs:Adaptors and outlets shall be
4''PT female
Note:First pressure 0~280kg;
Second pressure 0~25kg
 |
 |

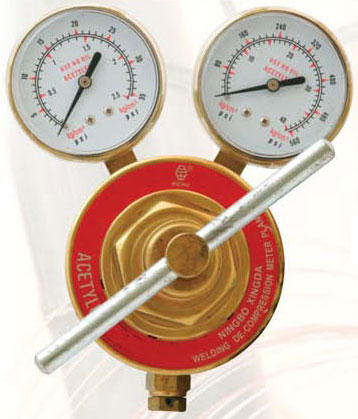

Product
designation: B336
Name: SR-29
arge-sized pipe meter
Specs:Adaptors and outlets shall be
4''PT female
Note: First pressure 0~400kg;
Second pressure 0~2.5kg
 |
Comparison of the above products:
|
Models |
Manometer㎏/c㎡ |
Applicable gas |
Inlet pressure
kgf/c㎡ |
Regulated pressure
kgf/c㎡ |
Specs of adaptors and outlets |
Weight
g |
Flow rate
Q(Nm3/H) |
|
First |
Second |
|
B335 |
280 |
25 |
Oxygen
Insert gases |
150 |
0~12 |
W22-14RH
or
W29-16RH
|
3225 |
10kgf/c㎡Air |
|
B336 |
40 |
2.5 |
Acetyiene
LPG |
20 |
0~1 |
3205 |
0.5kgf/c㎡Air |
|
 |

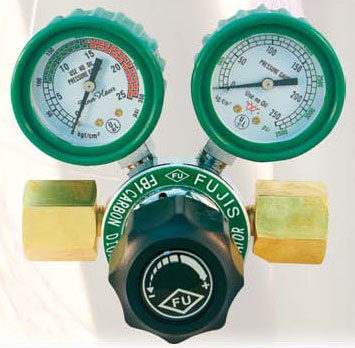

Product
designation:B337
Name:GN-pipe regulator
Specs:First pressure: 0~250kg;
second pressure: 0~25kg
Adaptors and outlets: 4'' PT male; can be
used for pipelines in
hospitals-laboratories |
 |
Product
designation:B338
Name: CNC pipe meter
Specs: Adaptors: M16-1.5
left male, Outlets: M16-1.5 left
male
Applicable gas: C2H2-LPG-natural
gas |
 |

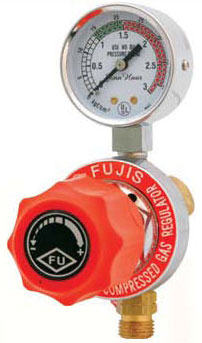

Product
designation:B339
Name: CNC pipe meter
Specs:Adaptors: M16-1.5
median male (can be attached by 5/16 Ferrul
(A),
Outlets:
M16-1.5 median thread
Applicable gas: O2-Ar-CO2-N2-He-N2O |
 |
Product
designation:B339-A
Name: Rear plug-type oxygen-acetylene used main
part (2")
Specs:Adaptors and outlets can be W13-19RH |
 |
Product

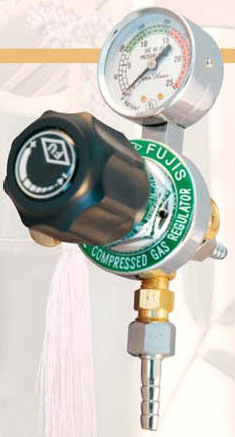

designation:B350
Name:GN-medium-sized pipe meter (O2)
Specs:Adaptors and outlets are fitted
with 5/16 Ferrules |
 |

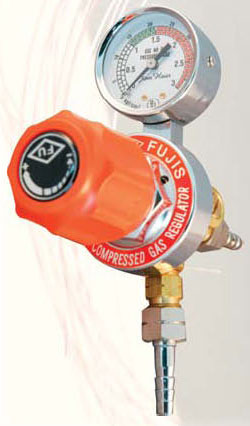

Product
designation:B350-A
Name:GN-medium-sized pipe meter
(AC-LPG)
Specs:Adaptors and outlets are fitted
with 5/16 Ferrules |
|
Pipe
products for assembling appliances-Valves |
 |

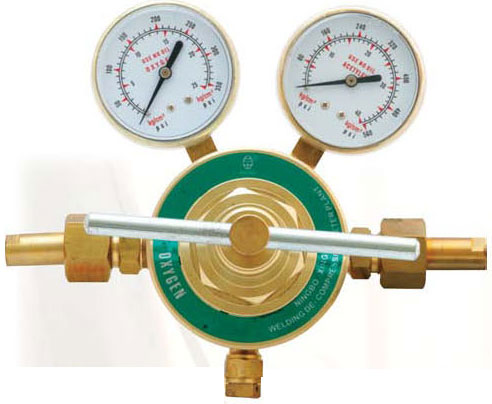

Product

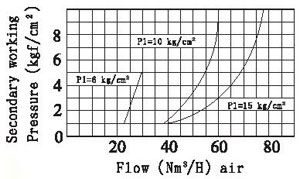

designation:B351
Name:Liquid regulator
|
|
 |
Product

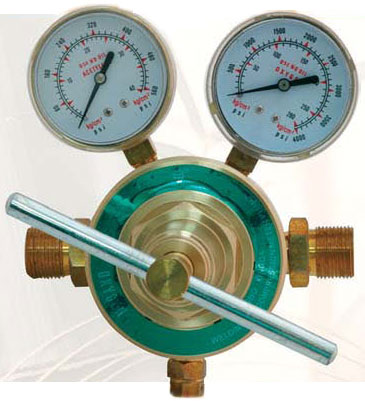

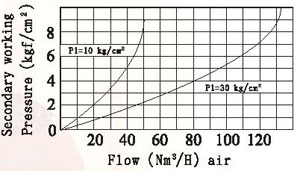

designation:B352
Name:Gas-liquid pipe regulator (can be used
for guages in laser cutting)
|
 |

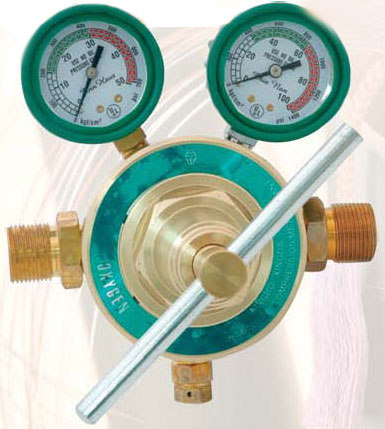

Product
designation:B353
Name: Large-sized regulator for pipes
|
Comparison of the above products:
|
Models |
Manometer ㎏/c㎡ |
Applicable gas |
Inlet pressure
kgf/c㎡ |
Regulated pressure
kgf/c㎡ |
Specs of adaptors and outlets |
Weight
g |
Flow rate
Q(Nm3/H) |
|
First |
Second |
|
B351 |
40 |
25 |
Oxygen
Insert gases |
20 |
0~10 |
W22-14RH
or
W29-16RH
|
3205 |
5kgf/c㎡Air |
|
B352 |
280 |
40 |
Oxygen
Insert gases |
150 |
0~30 |
3225 |
10kgf/c㎡Air |
|
B353 |
100 |
50 |
Oxygen
Insert gases |
35 |
0~30 |
3225 |
5kgf/c㎡Air |
|
|
|
Product
designation:B355
Name:
Japan CH-20 regulator
|
Product
designation:B356
Name:
Japan CH-14 regulator
|
|
Product
designation:B357
Name:
Japan CH-200 regulator |
Product
designation:B357-A
Name:Japan
CH-140 regulator |
