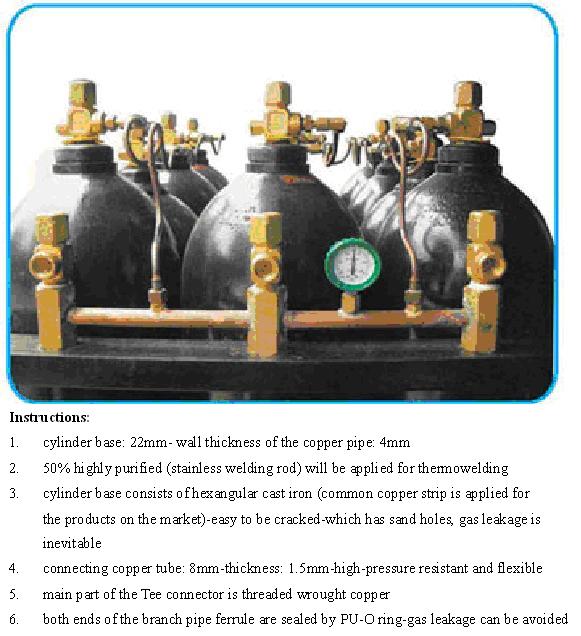

Movable
patented copper tube for connecting steel cylinders (patent No.
95597) |
|
|
Product
designation: D908
Name: Movable
patented copper tubes (full copper) for connecting steel cylinders
Specs: A-male-6
cylinders-KCOW
B-female-6
cylinders-KCOY
C-male-9
cylinders-HYOW
D-female-9
cylinders-HYOY
E-male-12
cylinders-HKOW
F-female-12
cylinders-HEOY
G-male-16
cylinders-HEOY
H-female-16
cylinders-HEOW
I-male-20
cylinders-CLOO
J-female-20
cylinders-CLOO |
 |
|
|

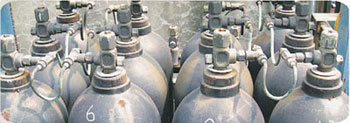

Product
designation: D909
Name:
Movable patented copper
tubes for connecting steel cylinders (with main base)-A-B-C-D-E-F-H-I-J
Product
designation: D910
Name: Movable patented copper
tubes for connecting steel cylinders (without main base)
-A-B-C-D-E-F-H-I-J
Product
designation: D911
Name: Movable patented copper
tubes for connecting steel cylinders (with main base, pressure guage)-A-B-C-D-E-F-H-I-J
Product
designation: D912
Name:
Movable patented copper
tubes for connecting steel cylinders (with main base, cylinder heads)-A-B-C-D-E-F-H-I-J
※Applicable to
the supply of N2-H2...,
The combination and connection during the operation process can
be selected as needed
|
|
D908-movable
patented copper tube fittings for connecting steel
cylinders-Part of products |
|
 |
Product
designation: D913
Name: Connection main base+cylinder
heads +manometer |
|
 |
Product
designation: D913-A
Name: Connection main base and cylinder heads without manometer |
|
 |
Product
designation: D913-B
Name: Connection main base and manometer
without cylinder heads |
|
 |
Product
designation: D913-C
Name: Connection main base without cylinder
heads and manometer |
|
 |
Product
designation: D913-D
Name: Male connector of tee joint |
|
 |
Product
designation: D913-DD
Name: Main part of tee joint |
|
 |
Product
designation: D913-E
Name: Female connector of tee joint |
|
 |
Product
designation: D913-F
Name: 90 degree male connector |
|
 |
Product
designation: D913-FF
Name: Main part of 90 degree connector |
|
 |
Product
designation: D913-G
Name: 90 degree female connector |
|
 |
Product
designation: D913-H
Name: Extended connecting copper tube |
|
 |
Product
designation: D913-HH
Name: Copper tube joint nozzle |
|
 |
Product
designation: D913-I
Name: Short connecting copper tube |
|
 |
Product
designation: D913-J
Name: Copper tube with 22
nut x 1.5 thread nut |
|
 |
Product
designation: D913-K
Name: Copper tube with 22.6
nut x 1.5 thread nut |
|
 |
Product
designation: D913-L
Name: Copper tube with 23
inner inclinationx 1.5thread nut
|
|
 |
Product
designation: D913-M
Name: 1 5/8 H-Cylinder
cap base (forging product)
1 5/8 A-Cylinder cap base(90°) |
|
 |

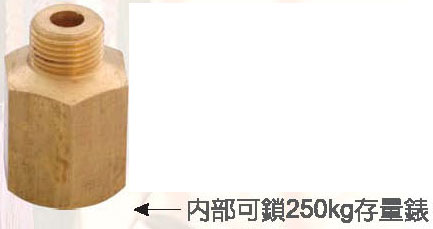

Product
designation: D913-N
Name: 13 x 19
thread nut-12 x 1.0 thread bolt
Note: The nut can lock 250kg capacity meter |
|
 |
Product
designation: D913-O
Name: 22.6 x 14RH
bolt |
|
 |
Product
designation: D913-P
Name: M14 x 1.0RH
copper screw |
|
 |

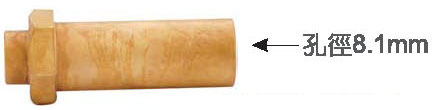

Product
designation: D913-Q
Name: Copper tube Ferrule+gasket |
|
 |
Product
designation: D913-R
Name: M14 x 1.0RH
Extended round bolt |
|
 |
Product
designation: D913-S
Name: M14 x 1.0RH
plane bolt+gasket |
|
 |
Product
designation: D913-T
Name: Round-head copper tube ferrule |
|
 |
Product
designation: D913-U
Name: Dual-head bolt M16 x 1.5RH
M12 x 1.0RH |
|
 |
Product
designation: D913-V
Name: Silver welding paste(500g;
1000g-A) |
|
 |
Product
designation: D913-W
Name: Silver welding rod (35%-A) |
|
 |
Product
designation: D913-X
Name: PUO ring(Used
for tee joint screw) |
|
Product
designation:D913-Z
Name: Serial No. of ordered products |
|
CO2-Acetylene
cylinders combination-Copper tubes-Teflon-Steel cylinders
connecting groups |
|
 |
Product
designation: D915
Name: CO2-Movable
tubes for the connection of four cylinders
CO2-Movable tubes for the
connection of eight cylinders(A) |
 |

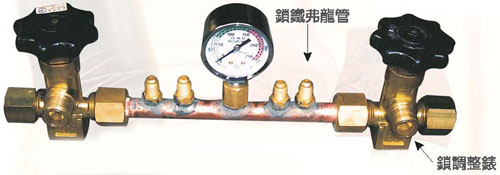

Product
designation: D916
Name:
Main base of connecting tubes-can be
used as part of the pipe 4 Teflon tube with 2-feet
long+23male x 2'' long axis(CO2-O2-H2-He-N2...) |
 |

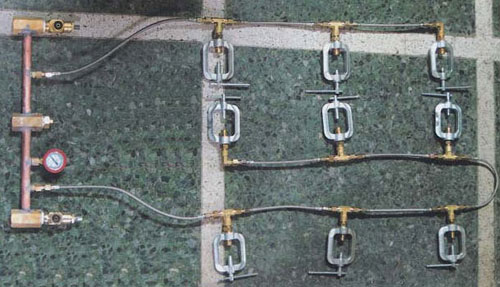

Product
designation: D916-A
Name:Movable tubes for connecting acetylene
steel cylinder
(patented)-(all)
(6 cylinders-9
cylinders-A; 12
cylinders-B) |
|
Steam
generator-Italian ball valve, Laser gas guage |
 |
Product
designation: D917
Name:Steam generator+cylinder cap base+coil
pipe
Main base of the outlet for
locking guages(A) |
 |
Product
designation: D918
Name: Input device for liqiud barrels,
including regulation guages
Specs: 3 inlets
1 outlet are fitted with guages
(mid-pressure)-N2-O2-CO2Ar
2 inlets 1
outlet (A)are fitted with guages
1 inlet 1
outlet(B) are fitted with guages |
 |
Product
designation: D919
Name: Input device for liqiud barrels
Specs: 1 inlet 2 outlets(A)are fitted with
guages-N2-O2-CO2-Ar
1 inlet 3 outlets (A)are fitted with
guages-N2-O2-CO2-Ar
1 inlet 4 outlet (B)are fitted with guages-N2-O2-CO2-Ar |
 |
Product
designation: D920
Name: Liqiud input device
Specs: One inlet and one outlet are fitted
with large flow laser gas guages |
|
Liqiud tee
joint connecting with Italian heavy ball valve |
 |
Product
designation: D920-A
Name: Liquid tee joint connecting with
Italian ball valve
Specs: The adaptors can be connected to
liquid barrels and galvanized
steel coil tubes (galvanized steel
flexible tubes) |
 |
Product
designation: D920-D
Name: Liquid 3-outlet Italian ball valve
Specs: Outlet can be connected with
regulation guages... |
 |
Product
designation: D920-B
Name: Liquid two-way joint connecting with
Italian ball valve
Specs: Adaptors can be connected to liquid
barrels and galvanized steel
coil tubes |
 |
Product
designation: D920-C
Name: Liquid four-outlet Italian ball valve
Specs: Outlets can be connected with
Ar-O2-He guages |
 |
Product
designation: D920-E
Name: Liquid two-outlet Italian ball valve
Specs: Outlets can be connected with
regulation guages |
|
Pipes of
liquid assembling devices-Valves, 10-20 cubic meter steam
generator |
 |
Product
designation: D921
Name:
1 inlet
2 outlets steam generator+ball
valve+hand wheel tee valve 1 inlet 3
outlets cylinder valve(A)
2 inlets 2 outlets cylinder valve(B)
2 inlets 3
outlets cylinder valve(C)
Specs: Mobile type; Convenient operation; Can
be used for locking
guages |
 |
Product
designation: D922
Name:
3 inlets
3 outlets steam generator+ball
valve+hand wheel tee valve
1 inlet 2
outlets cylinder valve(A)
2 inlets 2
outlets cylinder valve(B)
Specs: Applicable to locking a variety of
regulation guages |
 |
Product
designation: D923
Name: 10 cubic meter steam generator (4 supporing columns) |
 |
Product
designation: D925
Name: 20 cubic meter steam generator (8 supporing columns) |
|
15-30-40-50
cubic meter steam generator |
 |
Product
designation: D925-A
Name: 15 cubic meter steam generator (6 supporing columns) |
 |
Product
designation: D925-B
Name: 30 cubic meter steam generator (12 supporing columns) |
 |
Product
designation: D925-C
Name: 40 cubic meter steam generator (16 supporing columns) |
 |
Product
designation: D925-D
Name: 50 cubic meter steam generator (20 supporing columns) |
