Japan-Taiwan-American-cylinder head-sectional
view-Japan designation: DN |
 |
Product
designation: F600
Name: 4.75''
female air vent cylinder valve-attached
with Japan 3B
bakelite
Specs: Applicable to
European-American-Italian steel cylinders |
|
 |
Product
designation: F601
Name: 5''
female air vent cylinder valve-attached
with Japan 3B bakelite
Specs: Be applicable to American standard
steel cylinders→large
cylinders |
 |
Product
designation: F602(A3)
Name: 5.5''
female air vent cylinder valve-attached
with Japan 3B bakelite
Specs: Applicable to Japan standard cylinders
|
|
 |
Product
designation: F602(A2)
Name: 6''
female air vent cylinder valve-attached
with Japan 3B bakelite
Specs: Applicable to Japan standard steel
cylinders, the copper
components are manufactured through
forging process |
|
※Teflon of the above products are made in
Europe, and all the cylinder heads have obtained registered
trademarks, the serial No: 00962842 |
|
 |
Name: Parts
of the cylinder valve
Note: Section of the main part |
 |
Product
designation: F600-A
Name: Cap
of the cylinder head |
|
 |
Product
designation:
F600-B
Name: Teflon
sheet(large) |
 |
Product
designation:
F600-C
Name: Cylinder
valve core |
|
 |
Product
designation:
F600-D
Name: Tetragonal
copper plate |
 |
Product
designation:
F600-E
Name: Stainless
spring |
|
 |
Product
designation:
F600-F
Name: Japan
3B bakelite |
 |
Product
designation:
F600-G
Name: Safety
Tetoron sheet |
|
 |
Product
designation:
F600-H
Name: Safety
copper sheet |
 |
Product
designation:
F600-I
Name: Nut
of safety valve
Nut of safety valve(H2) |
|
 |
Product
designation:
F605
Name: 7''
female air vent cylinder valve-attached
with Japan 3B bakelite
Specs: Applicable to European steel cylinders
on ships and imported
cylinders |
 |
Product
designation:
F606
Name: 8''
female air vent cylinder valve-attached
with Japan 3B bakelite
Specs: Applicable to European steel cylinders
on ships and imported
cylinders |
|
 |
Product
designation:
F607
Name: 1''
female air vent cylinder valve-attached
with Japan 3B bakelite
Specs: Applicable to Japan standard cylinders
|
 |
Product
designation:
F608
Name: 1
1/8'' female air vent cylinder valve-attached
with Japan 3B
bakelite
Specs: Applicable to Japan standard cylinders
|
|
 |
Product
designation:
F609
Name: 1
1/4'' female air vent cylinder valve-attached
with Japan 3B
bakelite
Specs: Applicable to Japan standard cylinders
|
 |

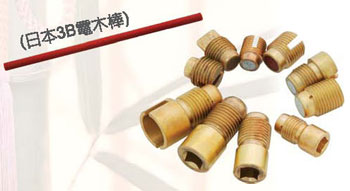

Product
designation:
F610
Name: Bakelie
essence(all 1"
and insertion-type) |
|
※Teflon
components inside the above cylinder valves are imported from
Europe, bakelite are made in Japan |
