Thermoweld apparatus |
|
 |

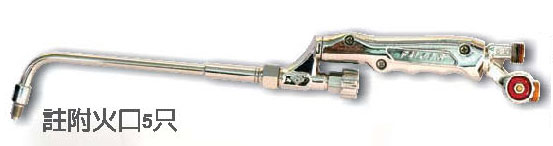

Product
designation:
A101
Name: Fuji-Small acetylene thermoweld
apparatus•EBB
Specs: Overall length: 360mm
Weight: 469g
Usage: General manufacturing,
Small-scaled welding in maintenance shops, Thermowelding of
metal slices, sheet metals and jewels,Dentistry
Burners: Attached
by one astroid shapped wrench and five small
hermo welding
burners (plus another five burners)
※Spare parts for choose
|
Serial number of burners |
25 |
50 |
75 |
100 |
150 |
|
Diameter ㎜ |
0.7 |
0.8 |
0.9 |
1.0 |
1.2 |
|
Thermowelding thickness ㎜ |
1 |
2 |
2 |
3 |
3 |
|
Oxygen pressure㎏/c㎡ |
3 |
3 |
3.5 |
4 |
4.5 |
|
Acetylene presuure㎏/c㎡ |
0.3 |
0.3 |
0.3 |
0.4 |
0.4 |
|
|
 |
Product
designation: A101-A
Name: Small thermowelding burner |
|
 |
Product
designation: A101-B
Name: Front end of the thermoweld apparatus (small thermowelding
burner) |
|
 |
Product
designation: A101-C
Name: Needle fineness apparatus |
|
 |
Product
designation: A101-D
Name: Bearing |
|
 |
Product
designation: A101-E
Name: Pre-heat acetylene low pressure
core-linked base |
|
 |
Product
designation: A101-F
Name: Air distribution needle pressure
core-linked base |
|
 |

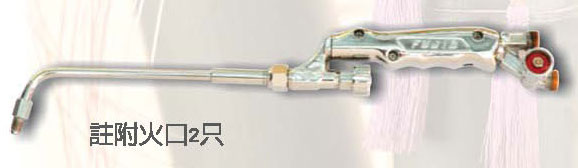

Product
designation: A102
Name: Fuji-small sized methane thermoweld
apparatus EBB
Note: Attahed by two burners |
|
 |
Product
designation: A102-A
Name: Burners for coal-gas and natural gas |
|
 |

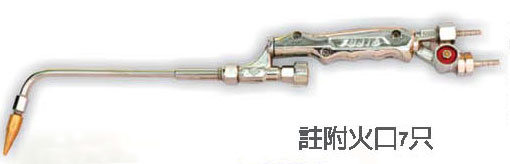

Product
designation: A103
Name: Fuji-medium-sized acetylene thermoweld
apparatus FGK
Specs: Overall length: 450mm
Weight: 490g
Usage: Applicable to the maintenance and
manufacturing of fittings of
machineries, auto and argricultural
plants, combined the
convenience of small appratus and the
efficiency of large ones,
suitable for the heating of lava teeth
mold and punch die
Burners: Attached
by one astroid shapped wrench and seven small thermowelding
burners (plus another seven burners)
|
Serial number of burners |
50 |
75 |
100 |
150 |
225 |
350 |
500 |
|
Diameter ㎜ |
1.2 |
1.3 |
1.4 |
1.5 |
1.5 |
1.7 |
1.8 |
|
Thermowelding thickness ㎜ |
2 |
3 |
3 |
4 |
4 |
5 |
5 |
|
Oxygen pressure㎏/c㎡ |
3.5 |
3.5 |
4.0 |
4.5 |
4.5 |
5 |
5 |
|
Acetylene presuure㎏/c㎡ |
0.3 |
0.3 |
0.4 |
0.4 |
0.5 |
0.5 |
0.6 |
|
|
 |
Product
designation: A103-A
Name: Medium-sized thermoweld burners |
|
 |

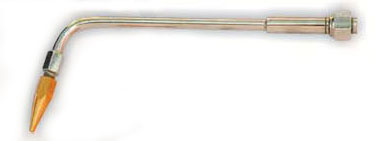

Product
designation: A103-B
Name: Front end of the thermoweld
apparatus (Medium-sized) |
|
 |

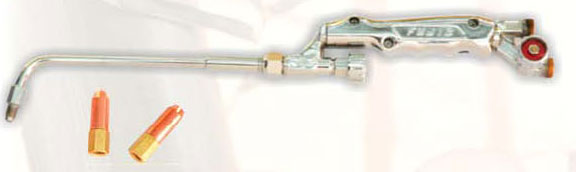

Product
designation: A105
Name: Fuji-Medium-sized methane gas thermoweld apparatus．FFK |
|
 |

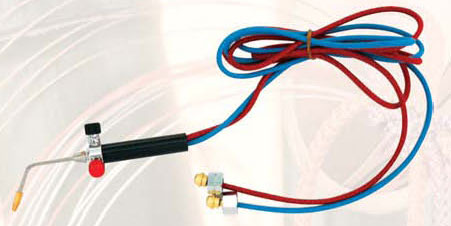

Product
designation: A106
Name: Fuji-Mini thermoweld apparatus
Specs: Overall length: 1890mm
Weight: 200g
Usage: Applicable to the welding of sheet
wares such as jewelries, watch
chain and handiworks for teaching
purpose
|
|
|
Product
designation: A106-A-B-C
Name: Mini methane gas thermoweld
burners
(three pieces) |
Product
designation: A106-D-E-F-G
Name: Mini methane gas thermoweld
burners
(four pieces) |
|
Burners |
 |
 |
|
Serial number of burners |
A106-A |
A106-B |
A106-C |
A106-D |
A106-E |
A106-F |
A106-G |
|
Diameter ㎜ |
0.7 |
0.8 |
0.9 |
0.4 |
0.5 |
0.6 |
0.7 |
|
Applicable gas |
|
OX-LPG |
|
|
OX-AC |
|
|
|
|
 |

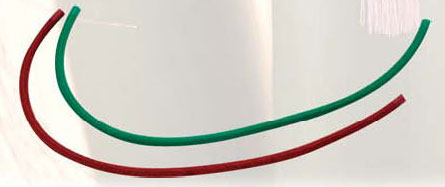

Product
designation: A106-H
Name: Mini PU rubber tubes (5X3) |
|
 |

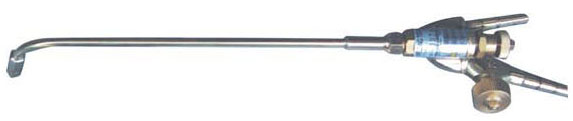

Product
designation:A107
Name: Japan Kanata-#00 thermoweld apparatus |
|
 |

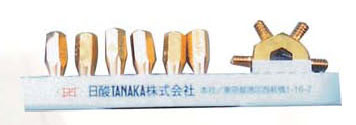

Product
designation:A107-A
Name: Kanata-#00
thermoweld burners |
|
 |
Product

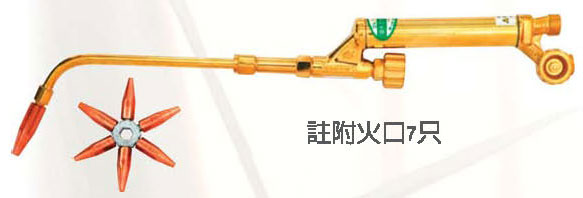

designation:A108
Name: Japan Kanata-medium-sized thermoweld
apparatus
Note: Attached by seven burners |
|
 |

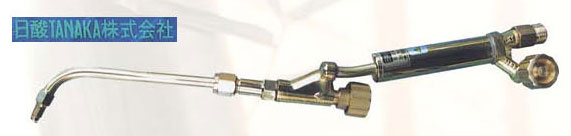

Product
designation:A108-A
Name: Japan Kanata-small-sized thermoweld
apparatus |
|
 |

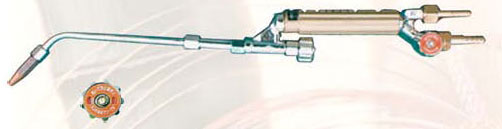

Product
designation:A109
Name: Japan Koike-small-sized thermoweld
apparatus |
|
 |

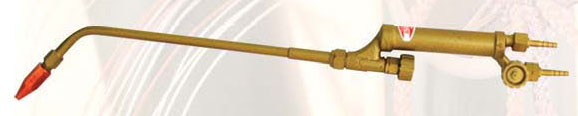

Product
designation:A110
Name: Japan Tokyo-FU-A thermoweld apparatus
Specs: Overall length: 550mm
Weight: 680g
Usage: Applicable to the thermowelding of
thick wares, and heavy
industries such as shipbuilding,
machineries and rialway construction
Burners: Seven A thermoweld burners
|
Serial number of burners |
250 |
315 |
400 |
500 |
630 |
800 |
1000 |
|
Diameter ㎜ |
1.4 |
1.5 |
1.6 |
1.8 |
2.0 |
2.2 |
2.4 |
|
Thermowelding thickness ㎜ |
3 |
4 |
4 |
5 |
8 |
10 |
12 |
|
Oxygen pressure㎏/c㎡ |
3.5 |
4 |
4 |
5 |
5 |
5 |
6 |
|
Acetylene presuure㎏/c㎡ |
0.3 |
0.3 |
0.4 |
0.4 |
0.4 |
0.5 |
0.5 |
|
 |
Product
designation:A110-A
Name: Japan large-sized FU thermoweld burners |
|
Thermoweld
appararus-ignitor |
 |

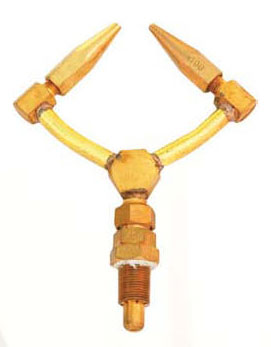

Product
designation:A111
Name:
Oxhorn dual thermoweld burner
Specs: Can be pre-fabricated as required by
the client |
 |

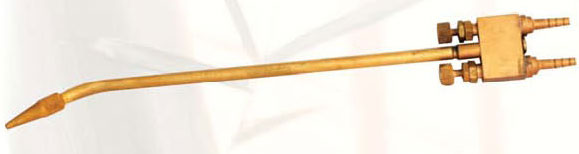

Product
designation:A112
Name:
CNN ignitor
Specs: Applicable to Seadis cutting machine |
 |
Product
designation:A113
Name: Stylet |
 |

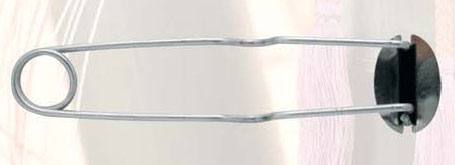

Product
designation:A115
Name: Ignitor |
 |
Product
designation:A116
Name: Flint |
