Heating
type-CO2
guages-Fittings
of pipe flowmeter, part of the products |
|
 |
Product
designation: B582

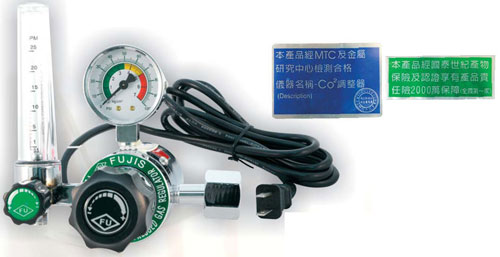

Name: FU-heating type guage (round pipe)
Specs: Power: 110V-220V(A)
Applicable gas: CO2-N2O |
 |
Product
designation: B582-B
Name: Intake nut (W22-14RH) |
 |
Product
designation: B582-C
Name: Intake nut(W13-19
thread) |
 |
Product
designation: B582-D
Name: PU-0 ring,
gasket(DD) |
 |
Product
designation: B582-E
Name: Outer pipe-round+O ring; outer
pipe-square-A |
 |
Product
designation: B582-F

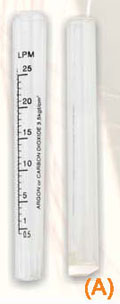

Name: Used for inner pipe, square inner pipe(A) |
 |
Product
designation: B582-G

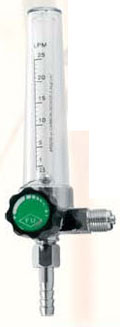

Name: Flowmeter |
 |
Product
designation: B582-H
Name: Seadis electric heating bar |
 |
Product
designation: B582-I
Name: Temperature controller |
 |
Product
designation: B582-J
Name: Outlet nut
Specs: Japan standard-American standard A |
 |
Product
designation: B582-K
Name: Outlet Ferrule (2.25'') |
 |
Product
designation: B582-L
Name: Japan 316 gavalized steel ball |
 |
Product
designation: B582-M
Name: Electric heating tube base |
 |
Product
designation: B582-N
Name: Main part of CO2guage |
 |
Product
designation: B582-O
Name: Base cap |
 |
Product
designation: B582-P

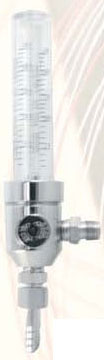

Name: Square flowmeter
Specs: 13X19 thread
(inlet thread) |
 |
Product
designation: B582-Q
Name: Bolt(W13X19
thread, 2''NPT） |
 |
Product
designation: B582-R
Name: Power line for CO2 |
|
Product
designation: B582-Z
Name: Serial No. of ordered products |
|
 |
Product
designation: B583

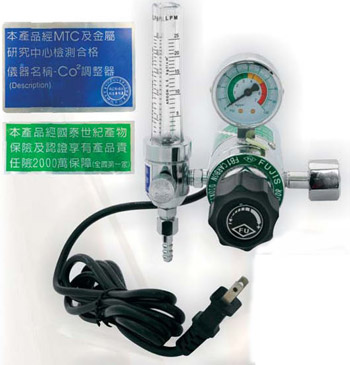

Name: FU-heating type CO2
guage (square pipe)
Specs: Power: 110V-220V(A)
Applicable gas: CO2-N2O |
|
 |
Product
designation: B585

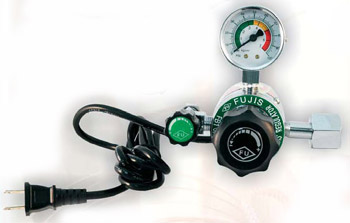

Name: CO2
regulator, outlet +flow control valve
Specs: Used for moulding-casting,
110V-220V(A); First pressure: 0~7kg;
Second pressure: 0~25kg(B) |
|
 |
Product
designation: B586

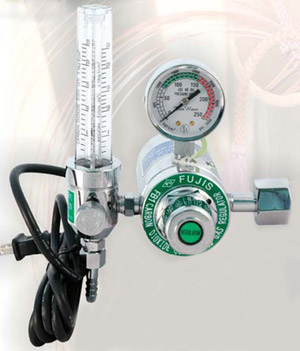

Name: Pre-set heating type CO2
guage
Specs: Power: 110V-220V(A) |
|
 |

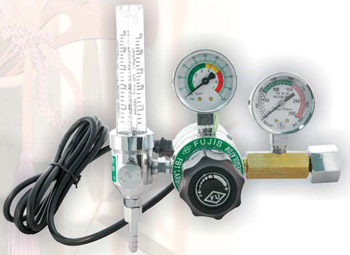

Product
designation: B586-A
Name: Carbonic acid regulator (double-dail
type)
Specs: First pressure: 0~250kg;
Second pressure: 0~7kg |
|
FU-Pipe
warmer-Pipe flowmeter, square pipe-round pipe |
|
 |

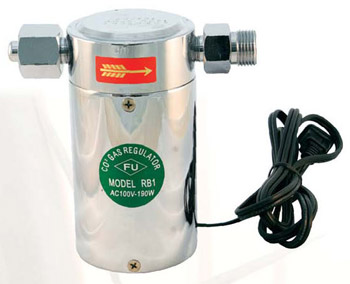

Product
designation: B587

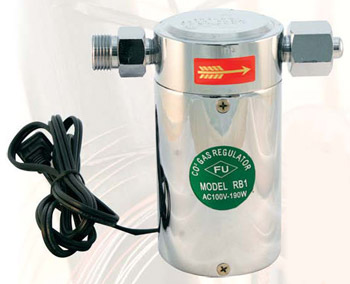

Name: Warmer (for
cylinder use) |
 |
Product
designation: B588
Name: Warmer (for pipe use) |
|
Function
comparison of the above products
|
Models |
B587
warmer |
B588
warmer |
|
Applicable gas |
CO2．N2O |
|
Inlet pressure |
Max.165㎏/c㎡ |
|
Power |
AC-110V
or AC-230V
50/60Hz |
|
Inlet specs |
W22-14RH
female |
W22-14RH
male |
|
Outlet specs |
W22-14RH
male |
W22-14RH
female |
|
Weight |
3825g |
3825g |

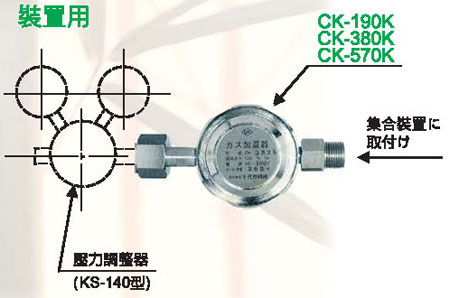

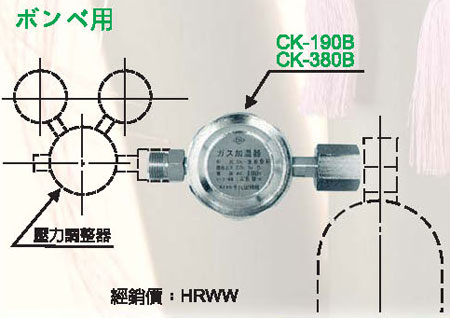

Function illustration1 Function
illustration 2
|
|
Flowmeters
(round pipe-square pipe) |
 |
Product
designation:B589 |
 |
Product
designation:B590

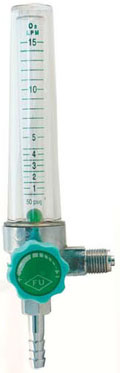

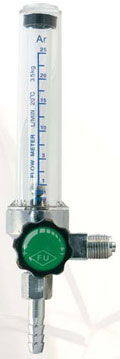

Name: O2
flowmeter |
 |
Product
designation:B591
Name: CO2
flowmeter |
 |
Product
designation:B592

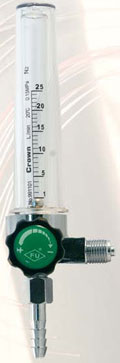

Name: N2
flowmeter |
 |
Product
designation:B593

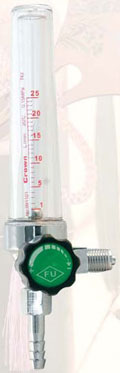

Name: H2
flowmeter |
 |
Product
designation:B595
Name: Various types can be selected and
pre-fabricated |
|
Pipe
flowmeters (square pipe-round pipe) |
 |
Product
designation: B596
Name: 90°
pipe flowmeter
Specs: Adaptor: W22-14RH;
Outlet: 2.25'' Ferrule, Adaptors can be fitted with OD head (A),
outlets can be M16-1.5 male (B) |
 |
Product
designation: B597
Name: 180°
pipe flowmeter
Specs: Adaptor: W22-14RH;
Outlet can be 1/4 Ferrule, 5/16
Ferrule(A),Outlets can be fitted with M16-1.5
male(B), can also be fitted with
OD head (C) |
 |
Product
designation: B598

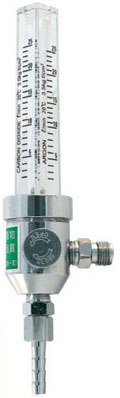

Name: Flowmeter with square pipe |
 |
Product
designation: B599
Name: Flowmeter (90°)
Specs: American standard, 9/16 x 18UNF |
 |
Product
designation: B600
Name: Flowmeter (180°)
Specs: American standard outlet, 9/16 x 18UNF |
 |
Product
designation: B600-A
Name: 1/min
flowmeter for pipes |
 |
Product
designation: B601
Name: 13 x 19
thread srew |
|
The
above flowmeters can select the following fittings:
．OD head ．Ferrule
．1/4FR
．3/16 Ferrule
．M16-1.5RH ．9/16 x 18UNF |
