Introduction of products-cylinder heads

Page 1Page 2 Page 3Page 4

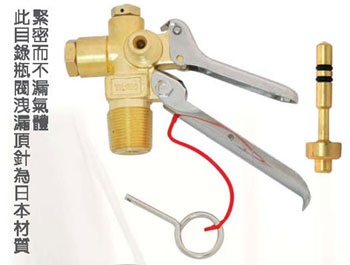

Made-in-Taiwan hand pressure CO2 cylinder valve, attached with Japan standard central push rod

Product designation: F611
Name: 6''hand pressure CO2 cylinder valve, attached with Japan
              standard central push rod
Specs: 4.75''(A)-5''(B)-5.5''(C)-4''(D)

Product designation: F612
Name:1''hand pressure CO2 cylinder valve, attached with Japan
             standard central push rod
Specs: Dimensions and sizes can be custom-made(7''-A)(8''-B)

Product designation: F613
Name: 3.5''hand pressure CO2 cylinder valve, attached with
             Japan standard central push rod
Specs: Can be grund and pre-fabricated as required by clients

Product designation: F615
Name: 7''straight thread hand pressure CO2 cylinder valve, attached
             with Japan standard central push rod
Specs: Applicable to aluminum alloy cylinders, power and water
             pipelines, theatrical effects, fire-extinguish cylinders

Product designation: F616-A
Name: Safety compression bolt

Product designation: F616-B
Name: Safety copper plate

Product designation: F616-C
Name: Safety gasket

Product designation: F616-D
Name: Galvanized steel upper pressing handle(for CO2 cylinders)

Product designation: F616-E
Name: Galvanized steel lower pressing handle(for CO2 cylinders)

Product designation: F616-F
Name: Plunger

Product designation: F616-G
Name:  Leakage-proof O-ring of the cylinder

Product designation: F616-H
Name: Leakage proof copper gasket

Product designation: F616-I
Name: Japan standard central push rod

Product designation: F616-J
Name: Compression spring

Product designation: F616-K
Name: Compression bolt

The above products are spare parts for CO2 cylinder valve

Product designation: F617
Name: 8''straight thread hand pressure CO2 cylinder valve, attached
             with Japan standard central push rod
Specs: 19.8 x 2.0RH-Applicable to high-pressure aluminum alloy
              cylinders

Product designation: F618
Name: 6''straight thread hand pressure CO2 cylinder valve, attached
             with Japan standard central push rod
Specs: 26.2 x 14RH-Applicable to aluminum cylinders for diving use

Product designation: F619
Name: 5''straight thread hand pressure CO2 cylinder valve, attached
             with Japan standard central push rod
Specs: 26.2 x 14RH-Applicable to fire-fighting aluminum alloy
             cylinders-steel cylinders

Product designation: F620
Name: 4.5''straight thread hand pressure CO2 cylinder valve,
             attached with Japan standard central push rod
Specs: 21.85 x 14RH(Applicable to aluminum alloy, steel cylinders)

Product designation: F621
Name: 4''straight thread hand pressure CO2 cylinder valve, attached
             with Japan standard central push rod
Specs: 19 x 16RH-Applicable to 1.2m aluminum alloy cylinders
       Leakage proof O-ring; Teflon(A)

Product designation: F622
Name: Cylinder valves with special dimensions and sizes(serial No.
              of ordered products)

Wholesale of Japan standard cylinder heads and spare parts

Product designation: F623
Name: Japan Daito female air vent cylinder valve (6''-A2)
Specs: 4.75''(A); 5''(B); 5.5''(C); 1"(D); 1 1/4(E)

Product designation: F625
Name: Japan Daito male air vent cylinder valve (6'')
Specs: 4.75''(A); 5''(B); 5.5''(C); 1"(D); 1 1/4(E)

Product designation: F626
Name: Japan Daito hand-wheel cylinder valve (6'')
Specs: 3.5''(A); 5''(B); 5.5''(C); 1"(D)

Product designation: F627
Name: Japan Daito male air vent hydrogen cylinder valve (6'')
Specs: 3.5''(A); 5''(B); 5.5''(C)

Product designation: F628
Name: Japan Daito hand-wheel hydrogen cylinder valve (6'')
Specs: 3.5''(A); 5''(B); 5.5''(C)

          Product designation: F629

Name: Japan Daito hand-wheel cylinder valve-spare parts (3.5''-6'')

Product designation: F629-A
Name: Hand-wheel type fixation nut

Product designation: F629-B
Name: Stainless spring

Product designation: F629-C
Name: Hand wheel cap

Product designation: F629-D
Name: Relaxed red gasket

Product designation: F629-E
Name: Compression nut on the cylinder valve

Product designation: F629-F
Name: Teflon washer of the cylinder core

Product designation: F629-G
Name: Cylinder core

Product designation: F629-H
Name: Bakelite of the 6'' hand-wheel type cylinder valve

Product designation: F629-I
NameSafety gasket

Product designation: F629-J
Name: Safety copper plate

Product designation: F629-K
Name: Safety valve nut

Product designation: F629-L
Name: Bakelite of the 3.5'' hand-wheel type cylinder valve

Made-in-Taiwan hand-wheel type cylinder valve, attached with Japan Tetoron

Product designation: F630
Name: 3'' hand-wheel type cylinder valve-Japan Tetoron bakelite
Specs: Applicable to American-standard steel cylinders and European
              standard aluminum cylinders

Product designation: F631
Name: 3.5'' hand-wheel type cylinder valve-Japan Tetoron bakelite
Specs: Applicable to medical steel cylinders and 0.5-0.75m fire-
              fighting steel cylinders

Product designation: F632
Name: 6'' hand-wheel type cylinder valve-Japan Tetoron bakelite
Specs: 4.75''(A); 5''(B); 5.5''(C);
     outlets: 22 x 14RH 24.2 x 14RH(D);
     26.3 x 14RH(E)

Product designation: F633
Name: Spare parts of 3.5'' hand-wheel type cylinder valve

Product designation: F633-A
Name: Nut of the fixation cap

Product designation: F633-B
Name: Compression spring

Product designation: F633-C
Name: Hand wheel cap

Product designation: F633-D
Name: Relaxed red gasket

The above spare parts are 3.5'' products

Product designation: F633-E
Name: Compression bolt(3.5'')

Product designation: F633-F
Name: Teflon gasket(European standard)

Product designation: F633-G
Name: Cylinder valve core (for 3.5'' hand-wheel cylinder head)

Product designation: F633-H
Name: Tetoron bakelite(Japan)

Product designation: F633-I
Name: Safety gasket(3.5'')

Product designation: F633-J
Name: Safety copper plate(3.5'')

Product designation: F633-K
Name: Safety nut

           Product designation: F635
           Name: Spare parts of 6'' hand-wheel cylinder valve

Product designation: F635-A
Name: Fixation nut

Product designation: F635-B
Name: Compression spring

Product designation: F635-C
Name: Hand wheel cap

Product designation: F635-D
Name: Relaxed red gasket

Product designation: F635-E
Name: Compression bolt(for 6'')

Product designation: F635-F
Name: Teflon gasket(European products)

Product designation: F635-G
Name: Cylinder valve core(for 6'' hand-wheel cylinder head)

Product designation: F635-H
Name: Tetoron bakelite (Japan-6'')

Product designation: F635-I
Name: Safety gasket (for 6'')

Product designation: F635-J
Name: Safety gasket (for 6'')

Product designation: F635-K
Name: Safety valve nut

The above spare parts are applicable to 3.5'' and 6'' hand-wheel cylinder valves
