Regulators
for Argon-Nitrogen-Helium-Gas mixture (Attached by flowmeter and
flow control valve) |
|
 |
Product
designation: B602
Name: Ar
guage (piston type) with square pipe
Specs: Inlet:
(W22X14RH)(W23X14RH) Outlet: (M12X1.0RH)(9/16X18UNF) |
 |
Product
designation: B603
Name: Ar
guage (piston type) with round pipe |
 |
Product
designation: B605
Name: Piston-type Ar-N2
guage |
 |
Product
designation: B606
Name: Pressure
adjustable-conventional regulator (Ar guage)(N2-A)(H2-B)(He-C)
Specs: Outlet:
M12-1, 0RH+Ferrule-can choose to be
pre-fabricated |
 |
Product
designation: B607
Name: Double-flow
pressure adjustable regulator-Ar
First pressure 0~250kg -N2+A
Second pressure 0~5kg
-He+B
Specs: Dimensions of adaptors and outlets can
be selected as needed |
 |
Product
designation: B608
Name: Two stage single-dail-Ar guage (adjustable) |
 |
Product
designation: B609
Name: Two stage double-dail regulator-Ar-O2-N2-CO2(A) (B) (C)
Specs: First pressure: 0~250kg,
Second pressure: 0~10kg,
Adaptors and
outlets can be pre-fabricated |
 |
Product
designation: B610
Name: Two stage double-dail regulator+flow control valve |
 |
Product
designation: B611
Name: Two stage single-dail regulator+flow control valve
Applicable gas: Ar-O2-He-N2O-CO-CO2... |
 |
Product
designation: B612
Name: FU-Copper cap
regulator (N2-O2-Ar-CO2)(A) (B) (C)
Specs: Second pressure: 0-50kg (the applied
pressure can be up to 23kg) |
 |
Product
designation: B613
Name: Full
copper Nitrogen guage(mid-pressure)
Specs: Operation pressure: 0~25kg 0~30kg←→A |
 |
Product

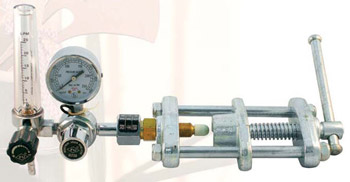

designation: B615
Name: Cylinder
bracket regulator (O2-Ar-N2-He-H2)... |
 |
Product
designation: B616
Name: Male
piston-type regulator(Ar-O2-N2-He)(A)-(B)-(C) |
 |
Product
designation: B617
Name: Two stage single-dail male regulator
Specs: Second pressure: 0~10kg(Ar-O2-N2-He) |
 |
Product
designation: B618
Name: Two stage double-dail male regulator
Specs: Applicable gas: (Ar-O2-N2-He)(A) (B) (C) |
 |
Product
designation: B618-A
Name: Two stage double-dail male/female regulator |
|
Double-dail-Oxygen free welded regulator-Part of fittings of
B602-B618 regulator |
|
 |
Product
designation: B619
Name: Oxygen free welded regulator
Specs: Operation pressure 0~20
Applicable gas: O2-N2-CO2-He-Ar-CO... |
 |
Product
designation: B620
Name: Double-dail+Y-type flowmeter regulator
Applicable gas: N2-Ar-O2-He |
 |
Product
designation: B602-A
Name: W22-14RH nut |
 |
Product
designation: B602-B
Name: Intake main tube (2'' PS) |
 |
Product
designation: B602-C
Name: Filter mesh(8mm) |
 |
Product
designation: B602-D
Name: Round outer pipe |
 |
Product
designation: B602-E
Name: Square outer pipe |
 |
Product
designation: B602-F
Name: Inner pipe-(old-type inner pipe+A) |
 |
Product
designation: B602-G
Name: Square inner pipe |
 |
Product
designation: B602-H
Name: Outlet nut |
 |
Product
designation: B602-I
Name: Outlet Ferrule (1/4) |
 |

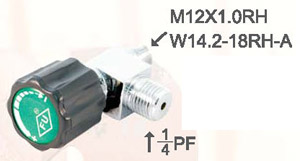

Product
designation: B602-J
Name: Oulet flow control valve |
 |
Product
designation: B602-K
Name: Japan 316 steel ball |
 |
Product
designation: B602-L
Name: 1 1/2 x 280kg
plug-type capacity meter |
 |
Product
designation: B602-M
Name: Ar inlet
gasket |
 |
Product
designation: B602-N
Name: Ar inlet
O-ring |
 |
Product
designation: B602-O
Name: Rotary knob |
 |
Product
designation: B602-P
Name: Gas control needle valve |
 |
Product
designation: B602-Q
Name: Outlet flow control main part |
 |
Product
designation: B602-R
Name: Double-flow aluminum base |
 |
Product
designation: B602-S
Name: Piston-type Ar guage body |
 |
Product
designation: B602-T
Name: Valve (A)-Valve cap (B) |
 |
Product
designation: B602-U
Name: 90°
Round main part |
 |
Product
designation: B602-V
Name: Needle valve compression bolt |
 |
Product
designation: B602-W
Name: Tough spring |
 |
Product
designation: B602-X
Name: 7/16X20RH
Nitrogen Ferrule |
 |
Product
designation: B602-Y
Name: M16-1.5RH nut |
 |
Product
designation: B609-A
Name: Dual-stage guage body (double-dail) |
 |
Product
designation: B609-B
Name: Two stage single-dail guage body |
 |
Product
designation: B609-C
Name: Extended main tube |
 |
Product
designation: B609-E
Name: 42mm round
guage body |
 |
Product
designation: B609-F
Name: Piston cover(enlarged) |
 |
Product
designation: B609-G
Name: Piston valve (enlarged) |
 |
Product
designation: B609-H
Name: Compression spring(24.5L)(26.5L) |
 |
Product
designation: B609-I
Name: O-ring of outer pipe |
 |
Product
designation: B609-J
Name: Grey protection casing |
 |
Product
designation: B609-K
Name: Dual-head bolt, 2''X1'', 1''X1''(A) |
 |
Product
designation: B609-L
Name: NutXbolt
Specs: M12X1.0RH
male, 7/16X20
female |
 |
Product
designation: B609-M
Name: NutXbolt, M12X1.0RH
male, M16X1.5RH
female |
 |
Product
designation: B609-N
Name: NutXbolt
Specs: 13X19 male
-13X19
female |
 |
Product
designation: OD-A(2分)
Name: Copper nut |
 |
Product
designation: OD-B(2分)
Name: Copper brushing |
 |
Product
designation: OD-C(2分)
Name: Copper brushing sleeve |
 |
Product
designation: OD-D(2分)
Name: Copper bolt |
 |
Product
designation: OB-A
Name: Copper nut(1'') |
 |
Product
designation: OB-B
Name: Copper brushing(1'') |
 |
Product
designation: OB-C
Name: Copper brushing sleeve(1'') |
 |
Product
designation: OB-D
Name: Copper bolt(1'') |
 |
Product
designation: B609-O
Name: 90 degree elbow
Specs: W13-19RH X M16-1.5RH |
 |
Product
designation: B609-P
Name: Pipe meter in laboratory
Specs: Adaptors and outlets subject to your
selection
Applicable gas: can be selected as needed |
|
Double-dail
O2-Ar-N2-He-H2-N2O-CO2
regulator (attached by flowmeter and flow control valve) |
 |
Product
designation:B621
Name: Two-stage adjustable-manometer-flow
control valve
Specs: Applicable gas: O2-Ar-He-N2O-CO2 |
 |
Product
designation:B622
Name: Double-dail regulator with flowmeter
Specs: Applicable gas: (N2-Ar-O2-He-N2O)
Inlet pressure: 0~250kg,
0~100kg(A) |
 |
Product
designation:B623
Name: Double-dail regulator with flowmeter
(female)
Specs: Applicable gas: N2-Ar-O2-He-N2O-CO |
 |
Product
designation:B625
Name: Double-dail regulator with flow control
valve
Specs: Applicable gas:CO-O2-N2-Ar-He-N2O
Operation pressure: 3.5kg-7kg-10kg-25kg-35kg Can
be selected and pre-fabricated |
 |
Product
designation:B626
Name: Double-dail regulator with flow control
valve
Specs: Adaptors: Female W22.6X14RH W24.2X14RH-A W26.2X14RH-B |
 |
Product
designation:B627
Name: Hydrogen regulator with flowmeter
Specs: Dimension of adaptors: W22X14LH、W21X14LH
Applicable gas: H2-CO-He... |
 |
Product
designation:B628
Name: Hydrogen regulator with flow control
valve
Specs: Applicable gas: H2-CO
Operation pressure: 4kg-7kg |
 |
Product
designation:B629
Name: Pressure adjustable-regulator with flowmeter
(male)(female-A)
Specs: Adaptors can be selected as female or
male
Second minim pressure:0-3kg
Applicable gas: N2-O2-Gas
mixture... |
 |
Product
designation:B629-C
Name: Adjustable pipe meter+flowmeter (10kg)
Specs: Adaptor can be selected as W22.6-14RH
female(A) W22-14RH male
Applicable gas: N2-Ar-O2-He-N2O...
Setting pressure:0~5kg |
