Gas filling
device-Tee valves of shifting aeration device-Shifting aeration
device-Nuts+Gas intake Ferrule-Cylinder bracket-Aeration guage |
|
 |

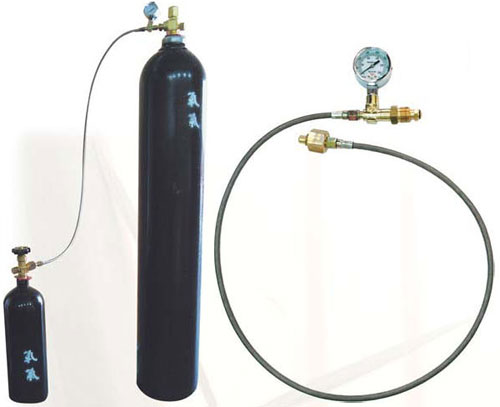

Product
designation:
D883
Name: Gas filling device (also called
big-small gas filling device)
Specs: Converying pipe is made of galvanized
steel wire, applicable to O2-N2-Ar-H2...
(A)(B)(C)
Attached by copper bolts:
23
male x 21 female,BB
pellet(D)
23 male x 3''NPT
male(E)
22 female x 21female(F)
22 female x 3''
female(G)
24.2 male x 22
female(H) |
|
 |

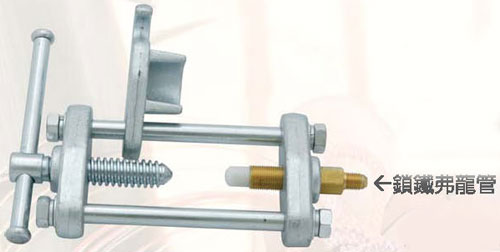

Product
designation: D885
Name: Cylinder bracket, including 7/16
x 20 thread axis (9/16 x 18
thread-A)
(16 x 1.5RH-B)
(3''PT-C)
(4''PT-D)
(2''NPT-E) |
|
 |

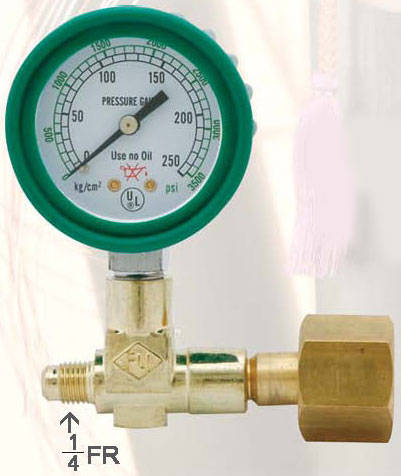

Product
designation: D886
Name: Luotian gas inflation guage |
|
 |
Product
designation: D886-A
Name: Gas control Tee valve |
|
 |

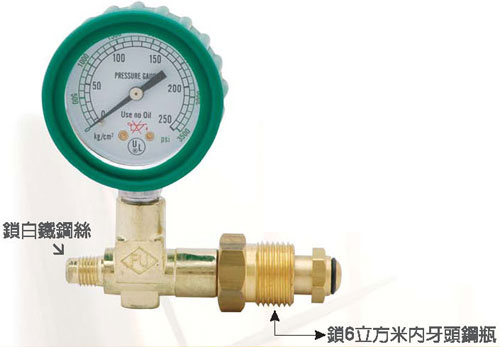

Product
designation: D887
Name: Male gas inflation guage |
|
 |
Product
designation: D887-A
Name: 22.6 x 14
thread bolt |
|
 |
Product
designation: D888
Name: All purpose thread (22.6 female x 2''
long axis)
Specs: Can be used as joint of Nitrogen
cylinder |
|
 |
Product
designation: D888-A
Name: O-ring |
|
 |
Product
designation: D889
Name: All-purpose thread (22nut x 2'' short
axis)
Specs: Can be used as joint of small Nitrogen
cylinder |
|
 |
Product
designation: D890
Name: 22nut+long axis+gasket
Specs: Nut + 9/16 x 18UNF +
gasket(A) |
|
 |

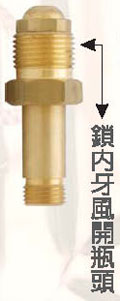

Product
designation: D891
Name: 22.6 male movable screw
Specs: Can be connected to guages or double
color tubes |
|
 |
Product
designation: D892
Name: 22 x 14thread x 3''PS
Ferrule
21 x 14thread x 3''Ferrule(A) |
|
 |
Product
designation: D893
Name: 22nut
x M16-1.5thread,
inner inclination
Specs: Rubber tube nut can be locked by the
thread |
|
Backstop
device (for pipes) and internal fittings-Gas inflation guage on
steel cylinder bracket-Gas filling device |
|
 |
Product
designation: D895
Name: Gas control pipe connecting with
backstop device (entering from
the right and exiting from the
left)
Specs: The product is applied at the
end part of tee valves, residual
pressure is reserved in the
pipe-be able to replace empty cylinder
at any time-ensure the
continuous gas supply
|
|
 |
Product
designation: D895-A
Name: Valve of backstop device |
|
 |
Product
designation: D895-B
Name: Connecting copper bolt (M11-1.0thread) |
|
 |
Product
designation: D895-C
Name: Connecting copper bolt (7/16-20thread) |
|
 |
Product
designation: D895-D
Name:
Spring of backstop device |
|
 |
Product
designation: D895-E
Name: PU gasket |
|
 |
Product
designation: D895-F
Name: Gas control
pipe connecting with backstop device (applicable to female
cylinder caps, entering from the right and exiting from the left) |
|
 |
Product
designation: D896
Name: Gas control pipe connecting with
backstop device (entering from
the left and exiting from the
right) |
|
 |
Product
designation: D897
Name:
Male backstop device (O2)(Air-A)
Specs:
Applicable to medical pipes and breathing
machine (American
standard 1''NPT) |
|
 |
Product
designation: D898
Name: Gas inflation guage on the cylinder
bracket |
|
 |
Product
designation: D899
Name:
Steel cylinder bracket with W22
x 14 thread axis |
|
 |
Product
designation: D900
Name: 250kg
pressure guage+tee joint+screw |
|
 |

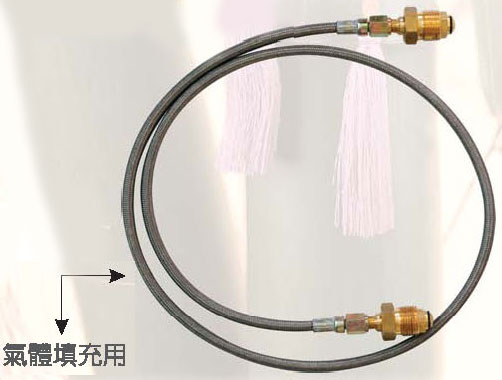

Product
designation: D901
Name:
Male gas filling device (without guages)
Specs:
Can be double female (A); Length can be
custom-made |
|
 |

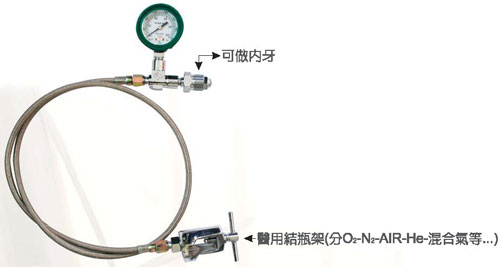

Product
designation: D902
Name:
European standard gas filling device
Specs:
Can be pre-fabricated as required by the
client |
|
 |
Product
designation: D903
Name:
Gas pipe for dual-cylinder bracket
Gas pipe for dual-cylinder
bracket+capacity meter(A) |
|
 |
Product
designation: D905
Name: Round gas control ferrule(3''PS)
Gas
control ferrule with gasket(A) |
|
 |

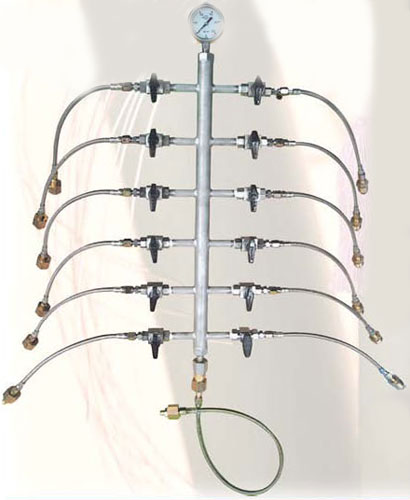

Product
designation: D906
Name: 12 vs
1 gas filling device
12vs2
12vs3
12vs5 |
