Fuji-Regulators-Methane gas guages-Calibrators-Fittings of
acetylene gauges used on ships-Parts |
|
 |

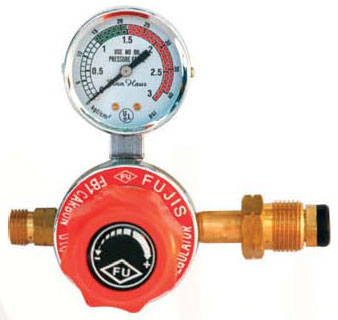

Product
designation: B205
Name: Fuji single-dial methane gas guage
Specs: Adaptors: CGA-510
(can be pre-fabricated)
Outlets: Japan standard threaded M16-1.5;
American standard
UNF threaded
9/16-18 |
|
 |
Product
designation: B206
Name: Fuji double-dial methane gas guage
Specs: Adaptors: CGA-510
(can be pre-fabricated)
Outlets: Japan standard threaded M16-1.5
(left); American standard UNF
threaded
9/16-18
(right) |
 |
Product
designation: B206-A
Name: Core pressure regulator |
 |
Product
designation: B206-B
Name: Copper guage caps (Aluminum-A) |
 |
Product
designation: B206-C
Name: Copper main part of the guage |
 |
Product
designation: B206-D
Name: Compression
gasket |
 |
Product
designation: B206-E
Name: Compression
spring |
 |
Product
designation: B206-F
Name: Rubber
ring gasket inside the guage caps |
 |
Product
designation: B206-G
Name: Intake bolted tubes group |
 |
Product
designation: B206-H
Name: Left threaded bolt |
 |
Product
designation: B206-I
Name: Main intake tube + O-ring gasket |
 |
Product
designation: B206-J
Name: 2x25kg Capacity
meter |
 |
Product
designation: B206-K
Name: 2x3kg
Manometer |
 |
Product
designation: B206-L
Name: Methane gas intake srew |
 |
Product
designation: B206-M
Name: Green protection casing |
 |
Product
designation:B206-N
Name: Red protection casing |
 |
Product
designation: B206-O
Name: Grey protection casing |
 |
Product
designation: B206-P
Name: Leakage-proof ring for intake lever |
|
 |

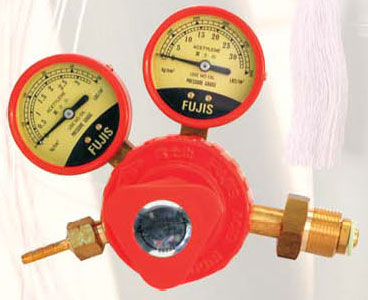

Product
designation: B207
Name: Fuji bolted acetylene guage
Specs: Adaptors: RH threaded W26.2-14
Outlets: Japan standard threaded M16-1.5
(left); American standard UNF
threaded
9/16-18
(right)
Note: Can be pre-fabricated as required by
the client. |
|
Fuji-GN-Regulators-oxygen-acetylene-hydrogen-gas mixture full
copper guages-Parts, Fittings |
|
 |

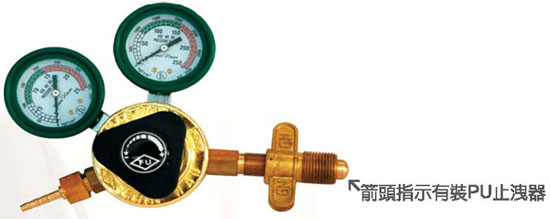

Product
designation: B208
Name: GN-Full
copper oxygen gauge
Specs: Electrogliding color+Protection
casing+PU head
Note: PU leakage-proof apparatus is indicated
by the arrow marks |
 |
Product

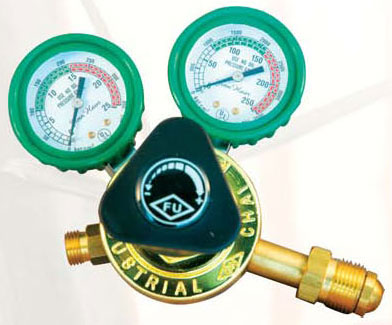

designation: B208-A
Name: GN-full copper male regulator
Specs:
Electrogliding color+Protection casing;
applicable to various
gases |
 |
Product

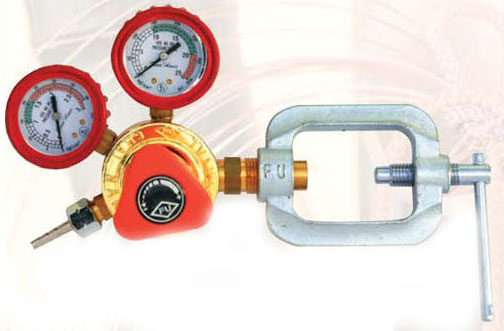

designation: B209
Name: GN-full copper acetylene gauge
Specs: Electrogliding color+Protection casing |
 |
Product

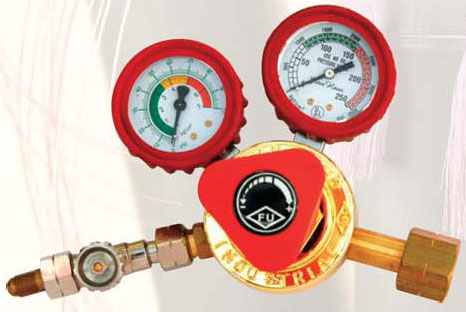

designation:B209-A
Name: GN-full copper hydrogen gauge
Specs: Electrogliding color+Protection
casing+flow control valve
Be used for aeration of balloon,
laboratories, and the outlet can be OD head |
 |
Product

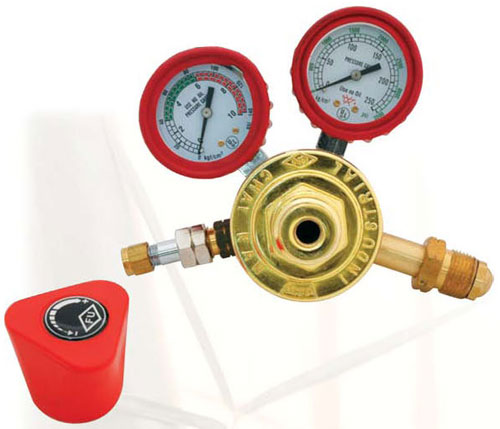

designation:B209-B
Name: GN-full copper left male hydrogen guage
Specs:CGA-510
(2X14LH inlet) (outlet can be 3/16
Ferrule-2''OD
head-1''ODhead) |
 |
Product

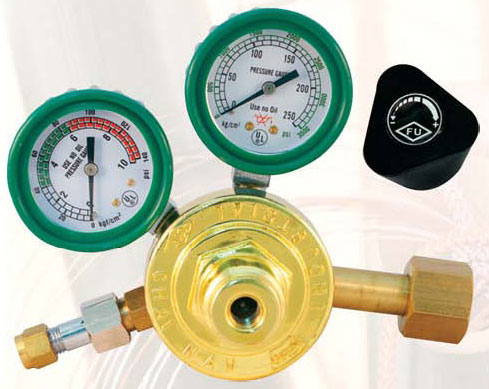

designation:B209-C
Name: GN-full copper hydrogen guage (second
pressure:0-10kg)
Specs: Adaptors can be
W21-14RH、W22-14RH、W24.2-14R Outlets can be M16-1.5RH、W7/16-20RH、2''OD
tube、 3/16
Ferrule |
 |
Product
designation: B209-D
Name: GN-full copper regulator
Specs: Second pressure 0-3kg (CO2
, in laboratory) The outlet joints can be selected as
needed |
|
Fuji-GN-Regulators-Parts and fittings |
 |

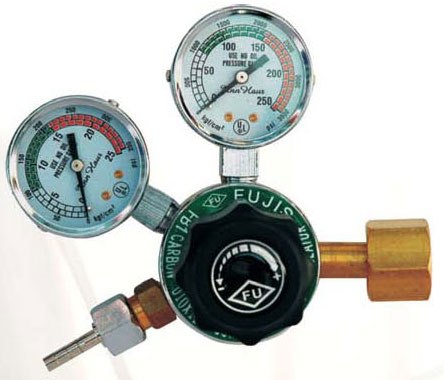

Product
designation: B310
Name: Female regulator
Specis: The adaptors can be selected as
needed
W22X14RH、W21X14RH、W24.2X14RH、W26.2X14RH；Applicable to O2-CO-He-N2O-N2 |
 |
Product
designation:B310-A
Name: Core pressure
regulator |
 |
Product
designation:B310-B
Name: Aluminum, copper upper caps for guages
(A) |
 |
Product
designation:B310-C
Name: Copper main part of guages |
 |
Product
designation:B310-D
Name:W22-14RH
nuts |
 |
Product
designation:B310-E
Name: Intake main tube |
 |
Product
designation:B310-F
Name:
Filter mesh, 8mm |
 |
Product
designation:B310-G
Name:2X250kg Capacity
meter |
 |
Product
designation:B310-H
Name:2X250k
Manometer |
 |
Product
designation:B310-I
Name: Compression
gasket |
 |
Product
designation:B310-J
Name: Spring inside the top cap |
 |
Product
designation:B310-K
Name: Rubber
ring gasket inside the guage caps |
 |
Product
designation:B310-L
Name: Black metal |
 |
Product
designation:B310-M
Name: Internal spring |
 |
Product
designation:B310-N
Name: Piston cover |
 |
Product
designation:B310-O
Name: Safety valve group (T1-T2-T3) |
 |
Product
designation:B310-P
Name: Rubber tube bolt |
 |
Product
designation:B310-Q
Name: Round intake main tube (75L) |
 |
Product
designation:B310-R
Name: Round intake main tube (electrodliding
color) |
 |
Product
designation:B310-S
Name: Horizontal intake main tube+gasket |
 |
Product
designation:B310-T
Name:2X250kg
Capacity meter (Attached by protection
casing) |
 |
Product
designation:B310-U
Name:2X25kg
manometer (Attached by protection
casing) |
 |
Product
designation:B310-V
Name: Protection casing (green-A, Red-B) |
 |
Product
designation:B310-W
Name: Rubber ring gasket inside the upper guage cap (porose) |
